JCBRammax
RW1800S
Trench Compactor
16 specifications
1 / 5

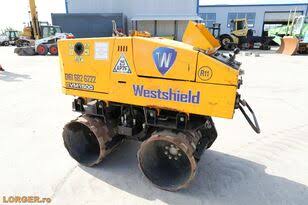

Image 1 of 5
Specifications
21 data points
Operating Specifications
| Operating Weight | 3,307 lb |
|---|---|
| Max Speed | 1.6 mph |
| Fuel Capacity | 5.8 gal |
| Hydraulic System Fluid Capacity | 18.5 gal |
| Alternator Supplied Amperage | 40 A |
| Operating Voltage | 12 V |
| Engine Oil Capacity | 1.1 gal |
Engine
| Engine Model | D1005-BB-EC |
|---|---|
| Displacement | 61 in³ |
| Power Measured @ | 3,000 rpm |
| Gross Power | 22.8 hp |
| Number of Cylinders | 3 |
Dimensions
| Ground Clearance | 7 in |
|---|---|
| Height - Top of Cab | 54 in |
| Wheelbase | 3 in |
| Overall Length w/o Blade | 66 in |
Drum
| Drum Width | 34 in |
|---|---|
| Centrifugal Force - High | 18,880 lb |
| Drum Diameter | 20 in |
| Nominal Amplitude - High | 0 in |
| Vibration Frequency 1 | 31 vpm |
