John Deere

2210 Floating-Hitch 43.6ft

Field Cultivator

Min Working Width
522 in
Transport Width
200 in
Transport Height
168 in
All field cultivators

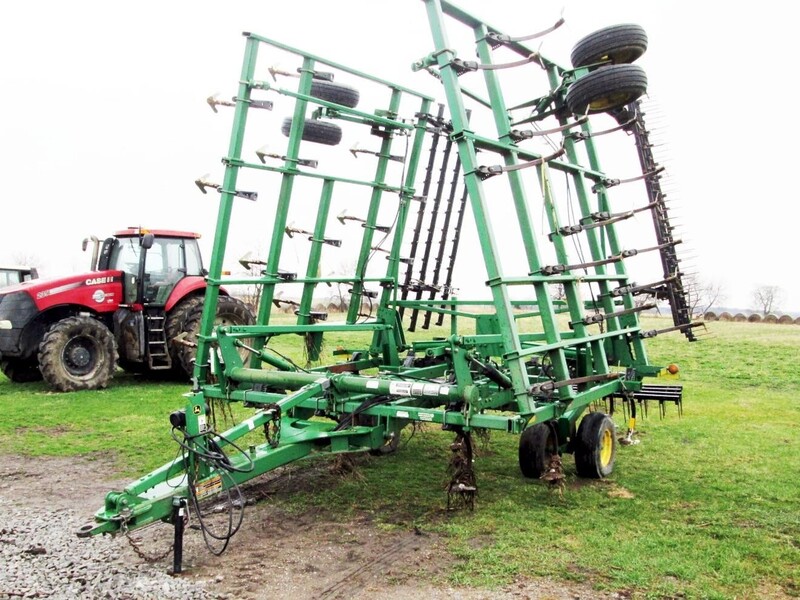

John Deere 2210 Floating-Hitch 43.6ft Field Cultivator
1 / 5
Image 1 of 5
Image: machinerypete.com

Specifications

20 data points

Operating Specifications

Operating Specifications specifications
Max Speed8.0 mph
Number of Sections5
Shank Trip Force150 lb
Max Operating Depth5 in

Dimensions

Dimensions specifications
Transport Width200 in
Transport Height168 in
PTO Power Required per Width Ft.4.0 hp
Under Frame Clearance24 in

Frame

Frame specifications
Min Working Width522 in
Max Working Width666 in
Main Frame Width144 in
Spacing Option 15 in
Spacing Option 26 in
Spacing Option 39 in

Harrow

Harrow specifications
Option 3 Type2-Bar Coil tine Harrow with rolling basket
Effective Spike/Tine Spacing5 in
Option 1 Type5-Bar Spike-Tooth Harrow
Spike/Tine Spacing9 in
Basket Diameter14 in
Option 2 Type3-Bar Coil-Tine Harrow
