John Deere

2210 Level-lift 20.6ft

Field Cultivator

Min Working Width
246 in
Transport Width
173 in
Transport Height
125 in
All field cultivators

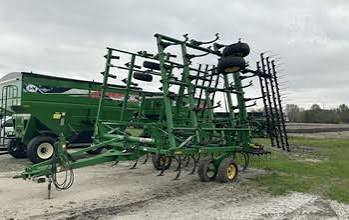

John Deere 2210 Level-lift 20.6ft Field Cultivator
1 / 5
Image 1 of 5
Image: machinerypete.com

Specifications

20 data points

Operating Specifications

Operating Specifications specifications
Max Speed8.0 mph
Number of Sections3
Shank Trip Force150 lb
Max Operating Depth5 in

Dimensions

Dimensions specifications
Transport Width173 in
Transport Height125 in
PTO Power Required per Width Ft.4.0 hp
Under Frame Clearance24 in

Frame

Frame specifications
Min Working Width246 in
Max Working Width342 in
Main Frame Width120 in
Spacing Option 15 in
Spacing Option 26 in
Spacing Option 39 in

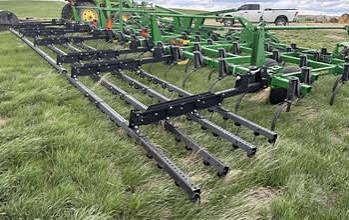

Harrow

Harrow specifications
Option 3 Type2-Bar Coil Tine Harrow with rolling basket
Effective Spike/Tine Spacing5 in
Option 1 Type5-Bar Spike Tooth Harrow
Spike/Tine Spacing9 in
Basket Diameter14 in
Option 2 Type3-Bar Coil-Tine Harrow
