John Deere

2320

Tractor

Displacement
68 in³
Power Measured @
3,000 rpm
Gross Power
24.0 hp
All tractors

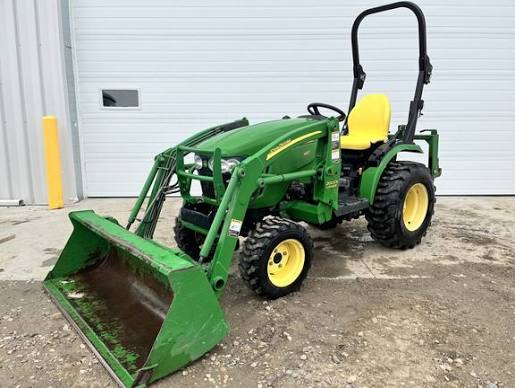

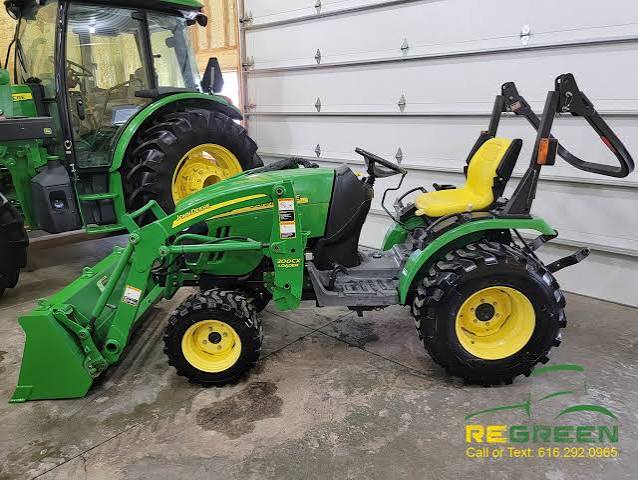

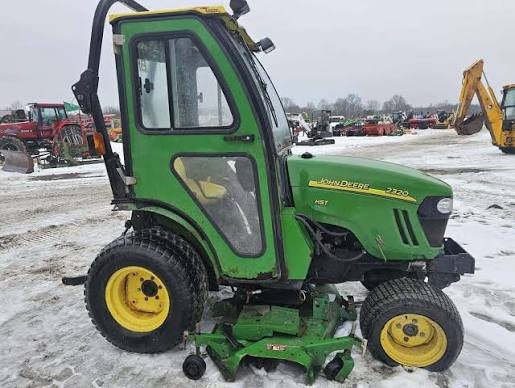

John Deere 2320 Tractor
1 / 5
Image 1 of 5
Image: tractor.com

Specifications

23 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity6.1 gal
3 Point Hitch Lift Capacity @ 24 inches1,151 lb
Turning Radius80 in
Alternator Supplied Amperage20 A
Operating Voltage12 V
Tire Size Front - 2wd / 4wd23x8.5-12R4
Cooling System Fluid Capacity0.9 gal
Engine Oil Capacity0.9 gal

Engine

Engine specifications
Engine Model3TNV76
Displacement68 in³
Power Measured @3,000 rpm
Gross Power24.0 hp
Number of Cylinders3
Aspirationnatural
Torque Measured @3,000 rpm
Max Torque40 lb-ft
PTO Power18.0 hp

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity5.7 gal/min
Number of Remote Control Valves2
Relief Valve Setting2,421 psi

Dimensions

Dimensions specifications
Wheelbase64 in

Transmission

Transmission specifications
Transmission Typehydro- 2 range

Tires & Wheels

Tires & Wheels specifications
Rear Tires Size31x12-16.5R4
