John Deere

2520

Tractor

Displacement
81 in³
Power Measured @
2,600 rpm
Gross Power
26.5 hp
All tractors

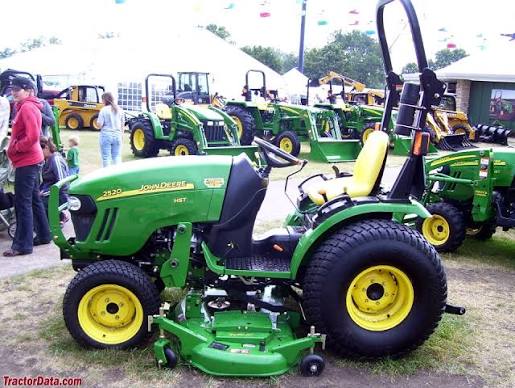

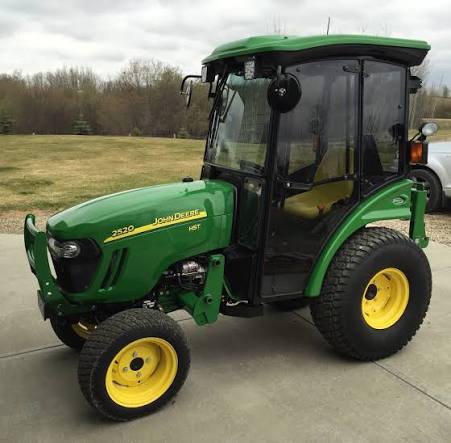

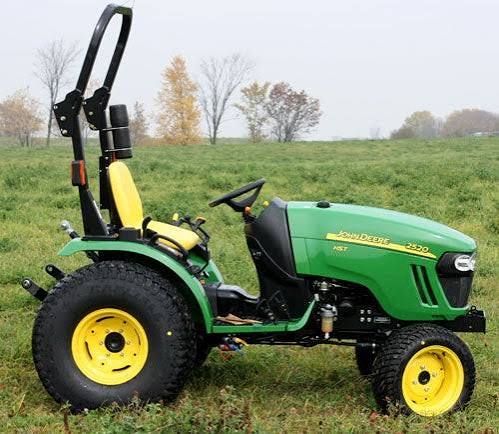

John Deere 2520 Tractor
1 / 5
Image 1 of 5
Image: deere.asia

Specifications

23 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity7.2 gal
3 Point Hitch Lift Capacity @ 24 inches1,151 lb
Turning Radius91 in
Alternator Supplied Amperage40 A
Operating Voltage12 V
Tire Size Front - 2wd / 4wd23x8.5-12R4
Cooling System Fluid Capacity1.1 gal
Engine Oil Capacity0.8 gal

Engine

Engine specifications
Engine Model3TNV82A
Displacement81 in³
Power Measured @2,600 rpm
Gross Power26.5 hp
Number of Cylinders3
Aspirationnatural
Torque Measured @2,600 rpm
Max Torque51 lb-ft
PTO Power20.5 hp

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity10.5 gal/min
Number of Remote Control Valves2
Relief Valve Setting2,418 psi

Dimensions

Dimensions specifications
Wheelbase66 in

Transmission

Transmission specifications
Transmission Typehydro- 2 range

Tires & Wheels

Tires & Wheels specifications
Rear Tires Size36x14.00-17.5R4
