John Deere

344E

Wheel Loader

Operating Weight
16,014 lb
Bucket Capacity - heaped
1.70 yd³
Gross Power
80.0 hp
Net Power
75.0 hp
All wheel loaders

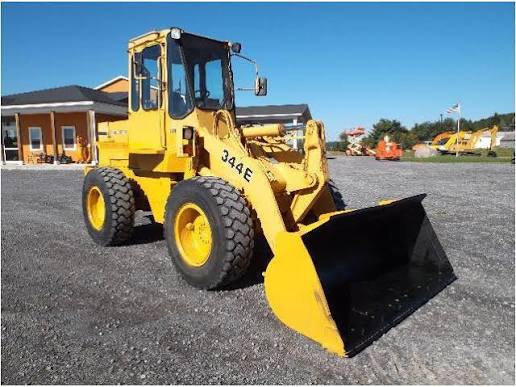

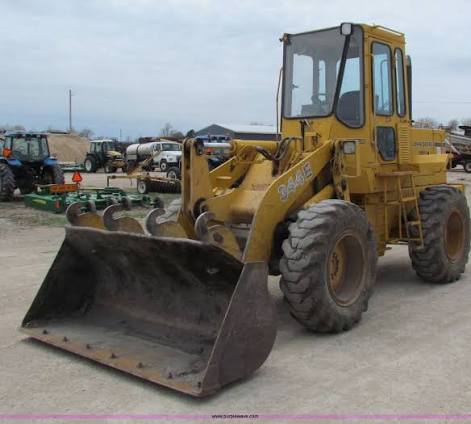

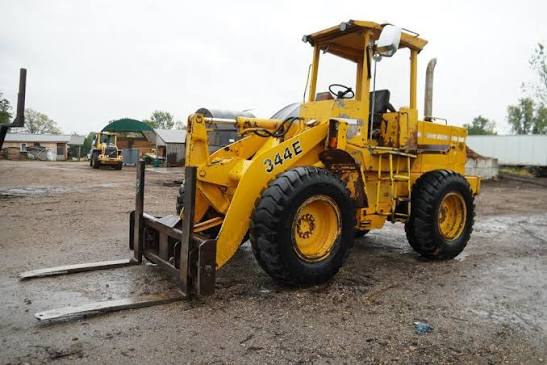

John Deere 344E Wheel Loader
1 / 5
Image 1 of 5
Image: brokentractor.com

Specifications

45 data points

Operating Specifications

Operating Specifications specifications
Operating Weight16,014 lb
Fuel Capacity32.0 gal
Tire Size15.5-25
Hydraulic System Fluid Capacity10.6 gal
Static Tipping Weight11,356 lb
Operating Voltage12 V
Turning Radius174 in
Engine Oil Fluid Capacity3.5 gal
Rear Axle Oscillation26 °
Alternator Supplied Amperage105 A
Front Axle/Diff Fluid Capacity4.3 gal
Rear Axle/Diff Fluid Capacity4.3 gal
Cooling System Fluid Capacity9.0 gal
Transmission Fluid Capacity2.1 gal

Engine

Engine specifications
Engine Model4045D
Displacement276 in³
Power Measured @2,200 rpm
Gross Power80.0 hp
Net Power75.0 hp
Number of Cylinders4
AspirationNatural
Torque Measured @1,200 rpm

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity32.3 gal/min
Raise Time5.3 s
Lower Time3.0 s
Dump Time1.0 s
Relief Valve Setting2,500 psi
Pump TypeGear Pump

Dimensions

Dimensions specifications
Ground Clearance16 in
Height - Top of Cab122 in
Wheelbase141 in
Width Over Tires86 in
Reach at Max Lift and Dump32 in
Length with Bucket on Ground238 in
Hinge Pin - Max Height135 in

Transmission

Transmission specifications
Max Speed - Forward18.6 mph
Max Speed - Reverse18.6 mph
Transmission TypeHydrostatic
Number of Forward Gears2
Number of Reverse Gears2

Bucket

Bucket specifications
Bucket Capacity - heaped1.70 yd³
Bucket Capacity - struck1.29 yd³
Dump Clearance at Max Raise107 in
Breakout Force14,595 lb
Bucket Width94 in
