W60TC
Wheel Loader
32 specifications
1 / 5

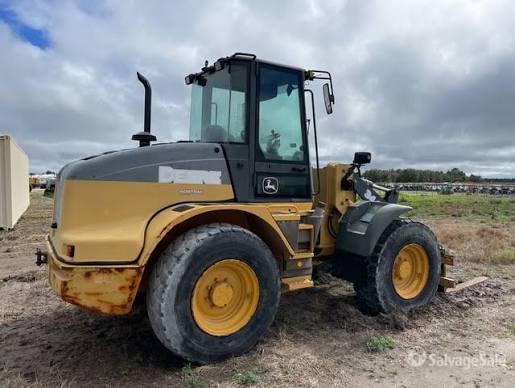

Image 1 of 5
Specifications
46 data points
Operating Specifications
| Operating Weight | 18,408 lb |
|---|---|
| Fuel Capacity | 42.0 gal |
| Tire Size | 17.5R25 |
| Hydraulic System Fluid Capacity | 26.0 gal |
| Static Tipping Weight | 13,668 lb |
| Operating Voltage | 12 V |
| Turning Radius | 1,992 in |
| Engine Oil Fluid Capacity | 3.5 gal |
| Rear Axle Oscillation | 20 ° |
| Alternator Supplied Amperage | 65 A |
| Front Axle/Diff Fluid Capacity | 2.5 gal |
| Rear Axle/Diff Fluid Capacity | 2.3 gal |
| Cooling System Fluid Capacity | 7.1 gal |
| Rated Bucket Capacity | 2.00 yd³ |
Engine
| Engine Model | 4045T |
|---|---|
| Displacement | 276 in³ |
| Power Measured @ | 2,400 rpm |
| Net Power | 98.0 hp |
| Number of Cylinders | 4 |
| Torque Measured @ | 1,400 rpm |
| Make | John Deere |
| Torque Rise | 36.0 % |
Weights
| Operating Weight | 16,976 lb |
|---|
Hydraulic System
| Pump Flow Capacity | 30.0 gal/min |
|---|---|
| Raise Time | 4.4 s |
| Lower Time | 4.0 s |
| Dump Time | 1.5 s |
| Relief Valve Setting | 3,335 psi |
| Pump Type | Gear |
Dimensions
| Ground Clearance | 16 in |
|---|---|
| Height - Top of Cab | 120 in |
| Wheelbase | 102 in |
| Width Over Tires | 544 in |
| Reach at Max Lift and Dump | 33 in |
| Length with Bucket on Ground | 241 in |
| Hinge Pin - Max Height | 144 in |
Transmission
| Max Speed - Forward | 18.6 mph |
|---|---|
| Max Speed - Reverse | 18.6 mph |
| Transmission Type | Hydraulic |
| Number of Forward Gears | 2 |
| Number of Reverse Gears | 2 |
Bucket
| Bucket Capacity - heaped | 2.00 yd³ |
|---|---|
| Bucket Capacity - struck | 1.60 yd³ |
| Dump Clearance at Max Raise | 113 in |
| Breakout Force | 17,310 lb |
| Bucket Width | 95 in |
