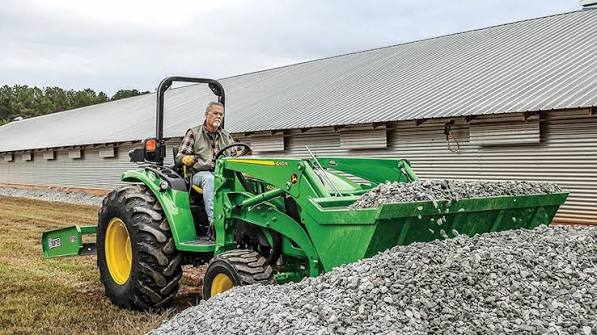

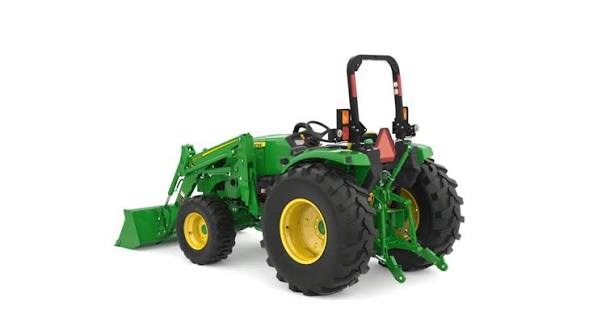

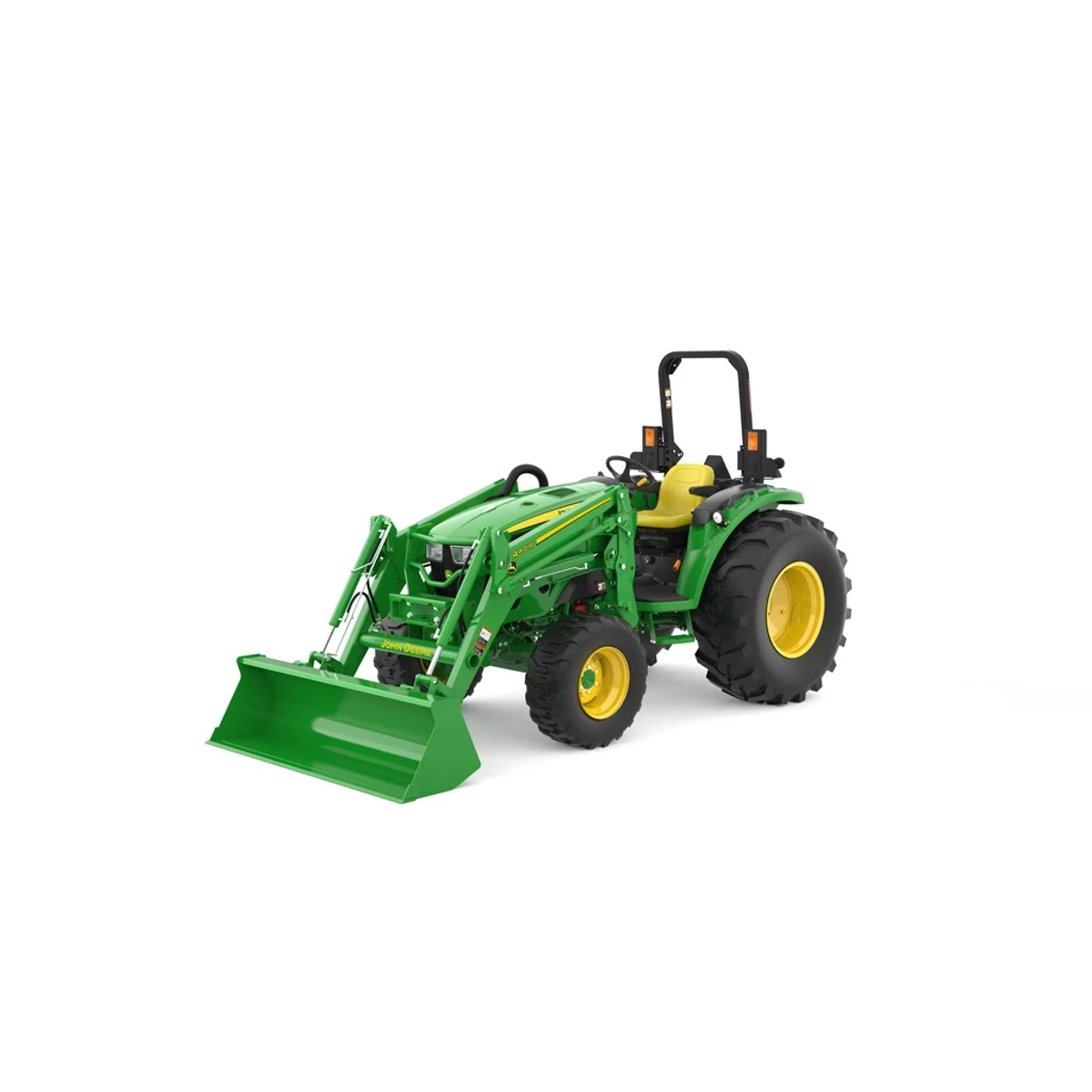

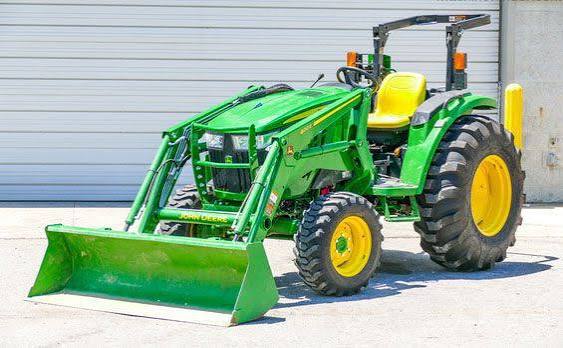

4066M

Specifications

61 data points

Engine specifications
Engine Model	4TNV86CHT-MJT
Displacement	128 in³
Gross Power	48.5 hp
Number of Cylinders	4
Aspiration	Turbocharged and charge air cooled
Bore	3 in
Stroke	4 in
Engine Type	Diesel
Air cleaner	Dual element
Cooling system	Liquid
Rated Engine Speed	2,600 rpm
Emissions compliance	Final Tier 4
Lubrication	Pressurized
Fuel tank capacity	—
Cylinder liners	Cast-In-Block
Engine torque at rated speed	131 lb-ft
Compression ratio	19.1:1
Family	EYDXL2.09HDA FYDXL2.09HDA GYDXL2.09HDA
Engine Manufacturer	Yanmar
Power take-off (PTO) power	54.0 hp
Injection pump type	High pressure common rail direct injection

Hydraulic System specifications
Pump Type	Dual gear
Remote control valves available	Three remotes optional
Draft control sensing	Position control
Hydraulic Type	Open Center
Pump rated output	Steering 21.5 L/min 5.7 gpmImplement 38.7 L/min 10.2 gpm 60.2 L/min 15.9 gpm

Dimensions specifications
Wheelbase	876 in
Front Axle Clearance	16 in
Turning radius with brakes	110 in
Turning radius without brakes	119 in
Approximate shipping weight (open-station; cab)	Open operator station (OOS) - 1710 kg 3770 lb Cab - 2120 kg 4675 lb

Transmission specifications
Brakes	Multi-plate wet disc
Steering	Hydrostatic power steering
Clutch, wet/dry	Wet
Differential lock	Yes
Final Drive Type	Planetary
Cruise control	Optional
Axle capacity	Front 1600 kg 3528 lbRear 2400 kg 5292 lb Mechanical front-wheel drive (MFWD) - 1.6 kg 5.9 lb
Standard transmission; forward/reverse	12/12 PowrReverser transmission (PRT)
Left-hand reverser	Yes
Clutch disk diameter wet clutch	5 in
Optional transmission; forward/reverse	3/3 Hydrostatic transmission (HST)

Fluid Capacities specifications
Crankcase with filter	1.4 gal
Transmission and hydraulic system	11.6 gal
