John Deere

4105

Tractor

Displacement
92 in³
Power Measured @
2,800 rpm
Gross Power
40.4 hp
All tractors

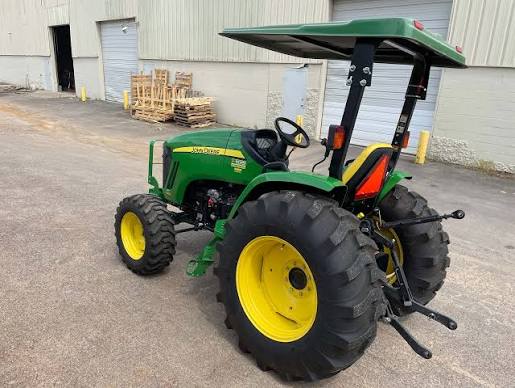

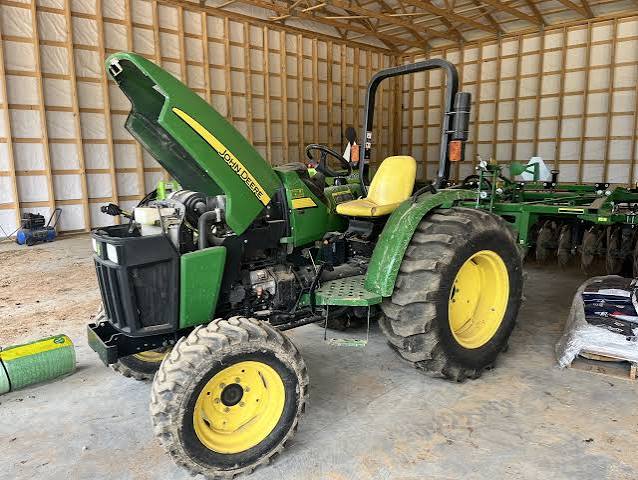

John Deere 4105 Tractor
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

23 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity10.5 gal
3 Point Hitch Lift Capacity @ 24 inches2,203 lb
Turning Radius114 in
Alternator Supplied Amperage40 A
Operating Voltage12 V
Tire Size Front - 2wd / 4wd10-16.5R4/8-16 R1
Cooling System Fluid Capacity1.5 gal
Engine Oil Capacity1.2 gal

Engine

Engine specifications
Engine Model3TNV84T-KJT
Displacement92 in³
Power Measured @2,800 rpm
Gross Power40.4 hp
Number of Cylinders3
Aspirationturbocharged
Torque Measured @2,800 rpm
Max Torque59 lb-ft
PTO Power32.5 hp

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity14.9 gal/min
Number of Remote Control Valves2
Relief Valve Setting2,500 psi

Dimensions

Dimensions specifications
Wheelbase69 in

Transmission

Transmission specifications
Transmission Typehydrostatic 2-range

Tires & Wheels

Tires & Wheels specifications
Rear Tires Size17.5L-24 R4/14.9-24
