John Deere

450 LC

Excavator

Operating Weight
97,680 lb
Max Digging Depth
288 in
Max Digging Depth
306 in
Net Power
285.0 hp
All excavators

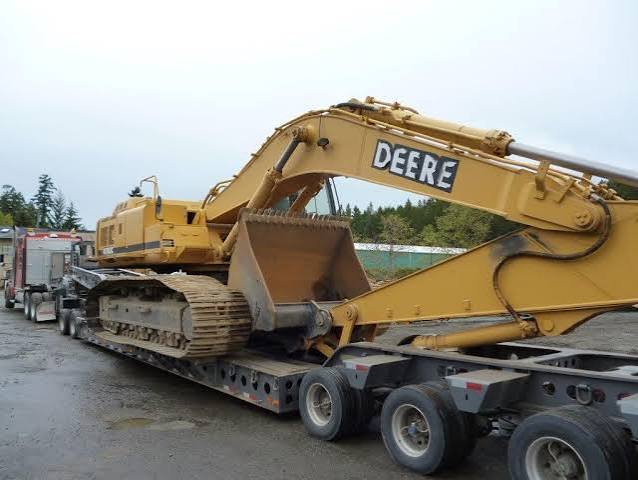

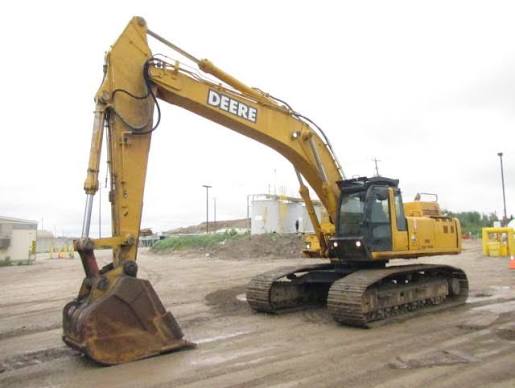

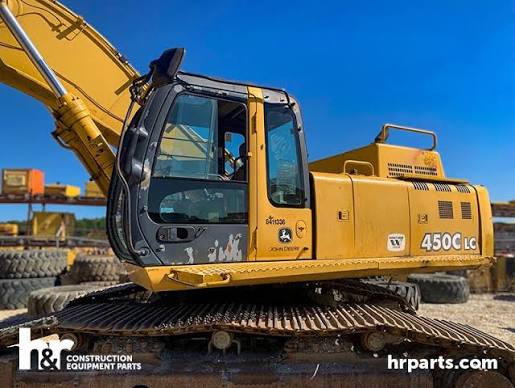

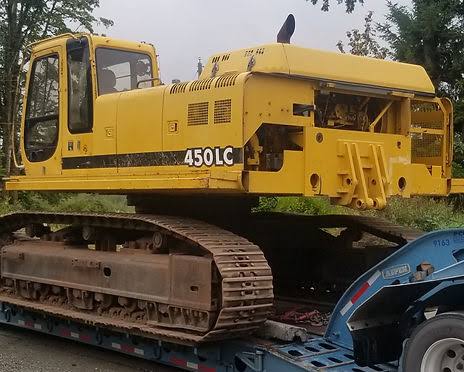

John Deere 450 LC Excavator
1 / 5
Image 1 of 5
Image: jmwood.com

Specifications

59 data points

Operating Specifications

Operating Specifications specifications
Operating Weight97,680 lb
Fuel Capacity160.0 gal
Hydraulic Pump Flow Capacity95.0 gal/min
Hydraulic System Fluid Capacity137.0 gal
Hydraulic System Relief Valve Pressure4,270 psi
Engine Oil Capacity9.0 gal
Cooling System Fluid Capacity10.1 gal
Operating Voltage24 V
Swing Drive Fluid Capacity1.6 gal
Alternator Supplied Amperage45 A

Engine

Engine specifications
Engine Model6101 A
Displacement619 in³
Power Measured @2,000 rpm
Net Power285.0 hp
AspirationTurbocharger
Torque Measured @1,300 rpm
Max Torque955 lb-ft

Dimensions

Dimensions specifications
Ground Clearance30 in
Height - Top of Cab130 in
Length of Track on Ground176 in
Tail Swing Radius137 in
Width to Outside of Tracks144 in
Removal Counterweight Clearance54 in

Undercarriage

Undercarriage specifications
Ground Pressure9 psi
Track Gauge114 in
Number of Track Rollers per Side9
Max Travel Speed3.4 mph
Shoe Size30 in
Number of Shoes per Side53
Number of Carrier Rollers per Side3
Drawbar Pull79,590 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth288 in
Max Reach Along Ground442 in
Max Loading Height276 in
Max Vertical Wall Digging Depth189 in
Max Cutting Height404 in
Shipping Length of Unit468 in
Shipping Height of Unit143 in

Bucket

Bucket specifications
Reference Bucket Capacity2.50 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth306 in
Max Vertical Wall Digging Depth253 in
Max Cutting Height437 in
Max Loading Height302 in
Max Reach Along Ground466 in
Shipping Length of Unit465 in
Shipping Height of Unit138 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth325 in
Max Cutting Height441 in
Max Loading Height306 in
Max Vertical Wall Digging Depth277 in
Max Reach Along Ground483 in
Shipping Length of Unit465 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth360 in
Max Cutting Height468 in
Max Reach Along Ground520 in
Max Loading Height346 in
Max Vertical Wall Dig Depth333 in
Shipping Length of Unit461 in
