John Deere

5045D

Tractor

Displacement
179 in³
Power Measured @
2,300 rpm
Gross Power
45.0 hp
All tractors

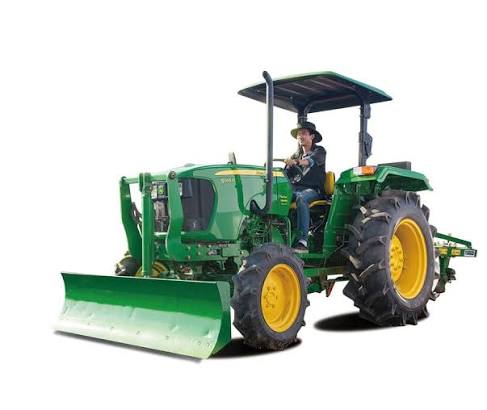

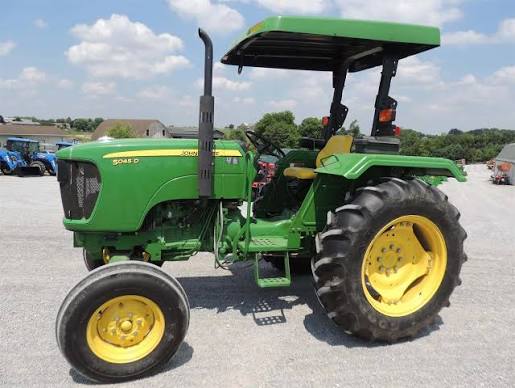

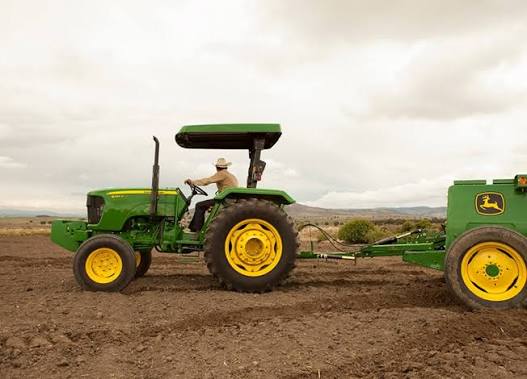

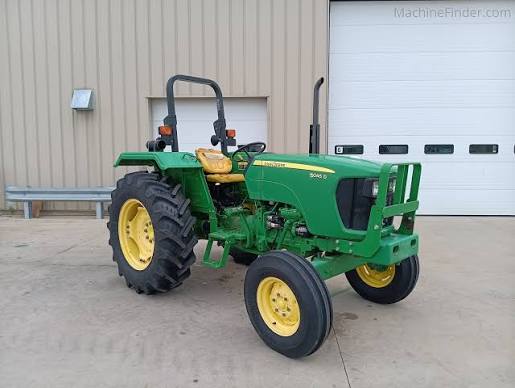

John Deere 5045D Tractor
1 / 5
Image 1 of 5
Image: deere.co.in

Specifications

18 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity15.9 gal
3 Point Hitch Lift Capacity @ 24 inches2,809 lb
Turning Radius115 in
Tire Size Front - 2wd / 4wd7.5-16

Engine

Engine specifications
Engine Model3029
Displacement179 in³
Power Measured @2,300 rpm
Gross Power45.0 hp
Number of Cylinders3
AspirationTurbocharged
PTO Power37.0 hp

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity18.3 gal/min
Number of Remote Control Valves1

Dimensions

Dimensions specifications
Ground Clearance18 in
Wheelbase77 in

Transmission

Transmission specifications
Number of Forward Gears8
Number of Reverse Gears4

Tires & Wheels

Tires & Wheels specifications
Rear Tires Size13.6-28
