John Deere

5325 Narrow

Tractor

Displacement
183 in³
Power Measured @
2,400 rpm
Gross Power
67.0 hp
All tractors
John Deere 5325 Narrow Tractor
1 / 5

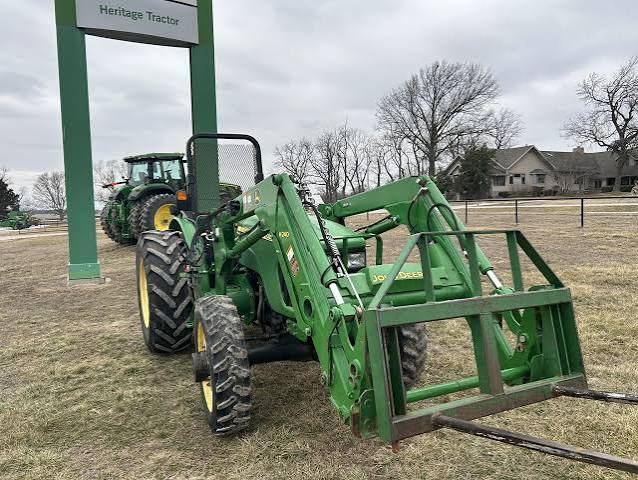

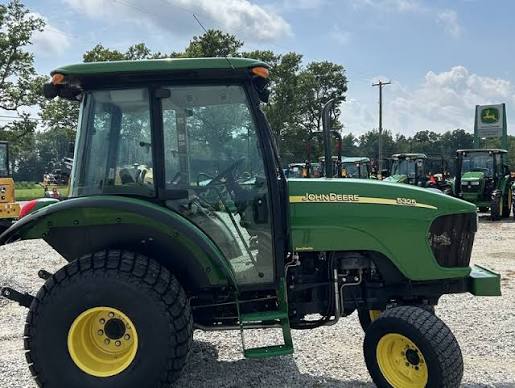

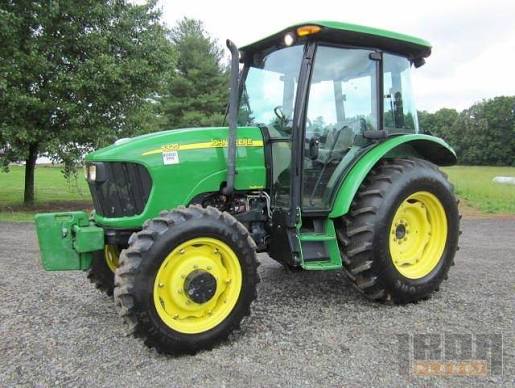

Image 1 of 5
Image: ebay.com

Specifications

18 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity19.0 gal
3 Point Hitch Lift Capacity @ 24 inches3,373 lb

Engine

Engine specifications
Displacement183 in³
Power Measured @2,400 rpm
Gross Power67.0 hp
Number of Cylinders5
Aspirationturbocharged
Torque Measured @1,446 rpm
Max Torque180 lb-ft
Engine Make2240
PTO Power56.2 hp

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity19.4 gal/min
Number of Remote Control Valves2
Relief Valve Setting2,828 psi

Transmission

Transmission specifications
Number of Forward Gears12
Transmission Type12F/12R PowrReverser
Number of Reverse Gears12

Tires & Wheels

Tires & Wheels specifications
Rear Tires Size12.4-24 6PR R1
