John Deere

5325 Utility

Tractor

Displacement
183 in³
Power Measured @
2,400 rpm
Gross Power
67.1 hp
All tractors

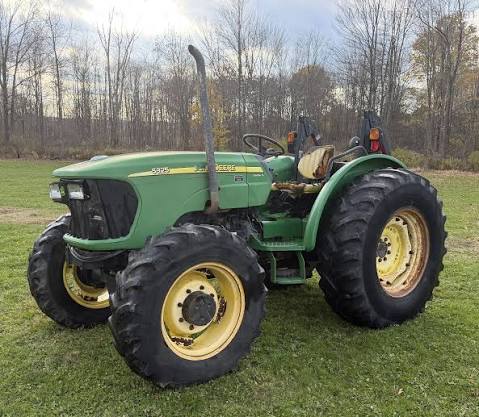

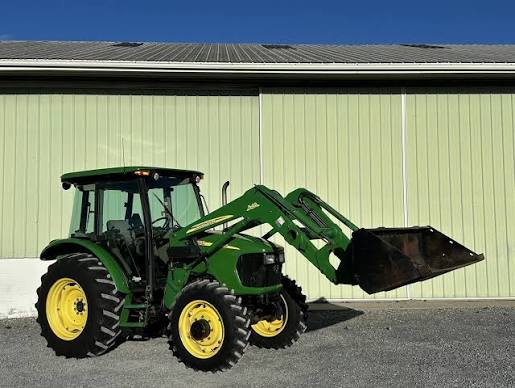

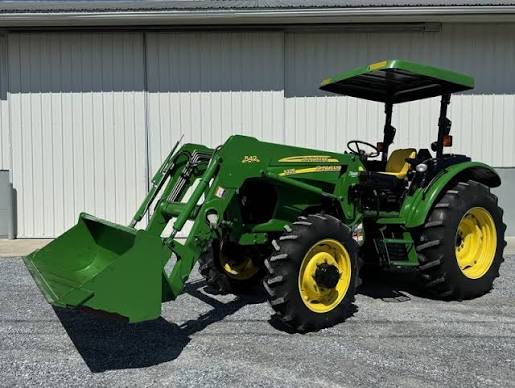

John Deere 5325 Utility Tractor
1 / 5
Image 1 of 5
Image: agprocompanies.com

Specifications

21 data points

Operating Specifications

Operating Specifications specifications
Tire Size Front - 2wd / 4wd7.50-16 6PR F2

Engine

Engine specifications
Engine Model5030
Displacement183 in³
Power Measured @2,400 rpm
Gross Power67.1 hp
Number of Cylinders5
AspirationTurbocharged
Torque Measured @1,446 rpm
Max Torque245 lb-ft
PTO Power55.0 hp

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity19.4 gal/min
Number of Remote Control Valves6
Relief Valve Pressure2,828 psi
Relief Valve Setting2,828 psi

Dimensions

Dimensions specifications
Wheelbase86 in
Tire SizeFront 9.5-24 6PR R1 Rear 14.9-28 6PR R1

Transmission

Transmission specifications
Number of Forward Gears9
Transmission TypeSyncShuttle
Number of Reverse Gears3

Tires & Wheels

Tires & Wheels specifications
Rear Tires Size14.9-28 6PR R1

Axles

Axles specifications
Final DriveInboard Planetary
