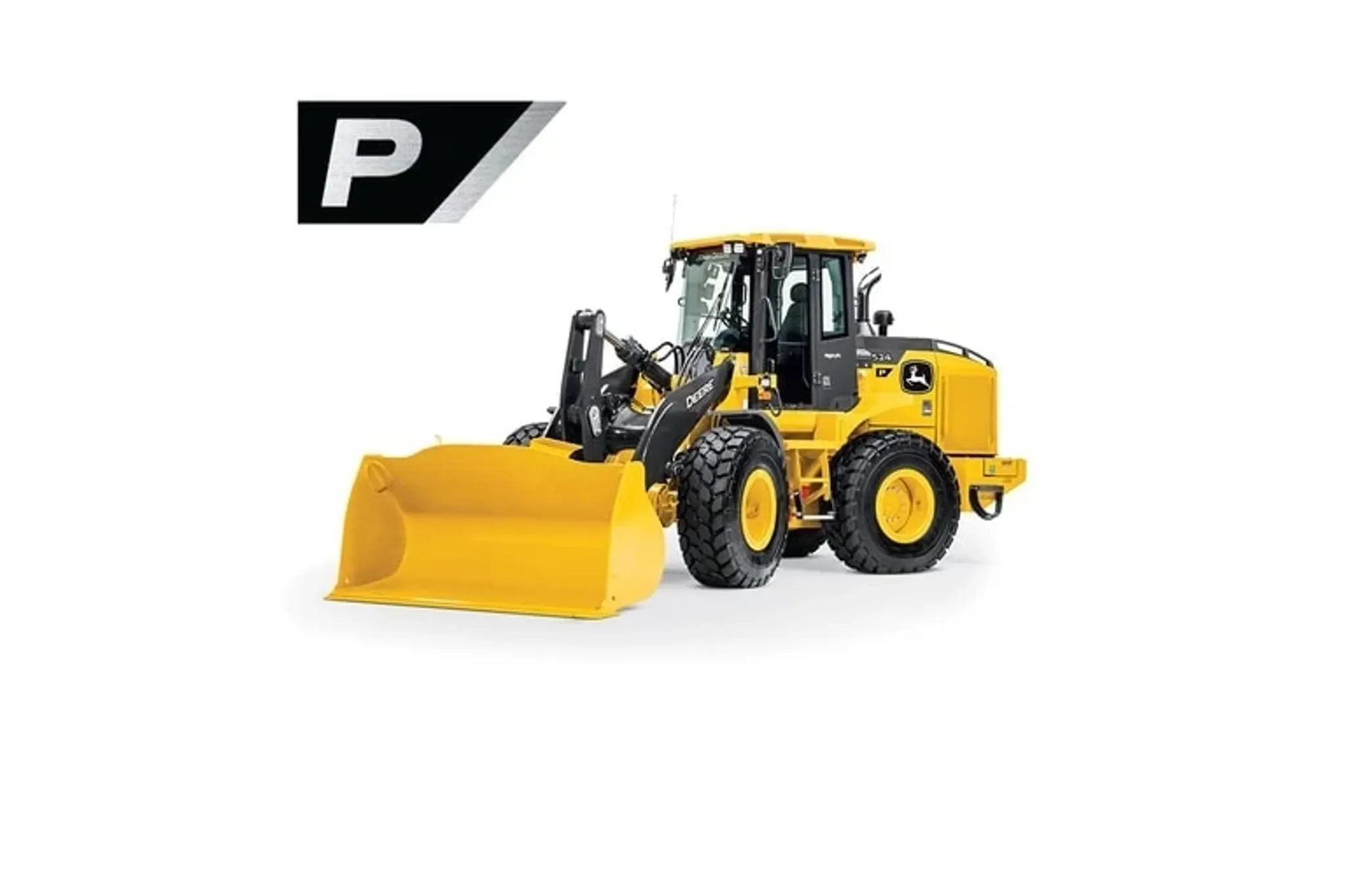

John Deere
544
- Operating Weight
- 18,500 lb
- Bucket Capacity - heaped
- 1.50 yd³
- Gross Power
- 125.0 hp
- Net Power
- 94.0 hp
1 / 5
Image 1 of 5
Specifications
42 data points
Operating Specifications
| Operating Weight | 18,500 lb |
|---|---|
| Fuel Capacity | 40.0 gal |
| Tire Size | 13-24 |
| Hydraulic System Fluid Capacity | 12.0 gal |
| Static Tipping Weight | 12,500 lb |
| Operating Voltage | 12 V |
| Turning Radius | 167 in |
| Engine Oil Fluid Capacity | 10.0 gal |
| Rear Axle Oscillation | 22 ° |
| Alternator Supplied Amperage | 55 A |
| Front Axle/Diff Fluid Capacity | 4.8 gal |
| Rear Axle/Diff Fluid Capacity | 4.3 gal |
| Cooling System Fluid Capacity | 7.5 gal |
| Transmission Fluid Capacity | 9.8 gal |
Engine
| Engine Model | Cat C4.4 ACERT |
|---|---|
| Displacement | 303 in³ |
| Gross Power | 125.0 hp |
| Net Power | 94.0 hp |
| Aspiration | Natural |
Weights
| Operating Weight | 27,000 lb |
|---|
Hydraulic System
| Pump Flow Capacity | 45.5 gal/min |
|---|---|
| Raise Time | 5.5 s |
| Lower Time | 1.2 s |
| Dump Time | 1.5 s |
| Pump Type | vane |
Dimensions
| Ground Clearance | 22 in |
|---|---|
| Height - Top of Cab | 118 in |
| Wheelbase | 95 in |
| Width Over Tires | 89 in |
| Reach at Max Lift and Dump | 36 in |
| Length with Bucket on Ground | 234 in |
| Hinge Pin - Max Height | 132 in |
Transmission
| Max Speed - Forward | 10.7 mph |
|---|---|
| Max Speed - Reverse | 2.8 mph |
| Transmission Type | Powershift Transmission |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 2 |
Bucket
| Bucket Capacity - heaped | 1.50 yd³ |
|---|---|
| Dump Clearance at Max Raise | 107 in |
| Breakout Force | 25,000 lb |
| Bucket Width | 89 in |
Service Refill Capacities
| Fuel Tank | 47.0 gal |
|---|
