John Deere

5525 Narrow

Tractor

Displacement
275 in³
Power Measured @
2,400 rpm
Gross Power
91.0 hp
All tractors

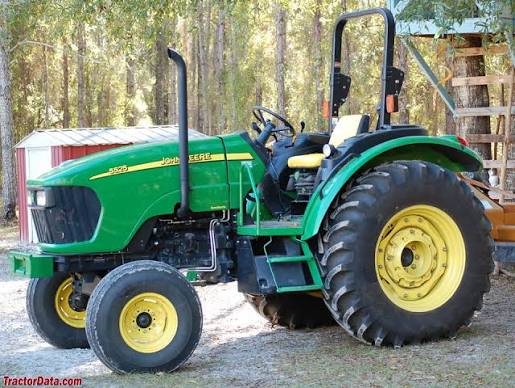

John Deere 5525 Narrow Tractor
1 / 5
Image 1 of 5
Image: machinerylink.com

Specifications

19 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity19.0 gal
3 Point Hitch Lift Capacity @ 24 inches3,373 lb

Engine

Engine specifications
Displacement275 in³
Power Measured @2,400 rpm
Gross Power91.0 hp
Number of Cylinders4
Aspirationturbocharged
Torque Measured @1,401 rpm
Max Torque229 lb-ft
Engine Make2240
PTO Power76.1 hp

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity25.0 gal/min
Number of Remote Control Valves2
Relief Valve Setting2,828 psi

Dimensions

Dimensions specifications
Wheelbase86 in

Transmission

Transmission specifications
Number of Forward Gears12
Transmission Type12F/12R PowrReverser
Number of Reverse Gears12

Tires & Wheels

Tires & Wheels specifications
Rear Tires Size12.4-24 6PR R1
