John Deere

5525 Utility

Tractor

Displacement
275 in³
Power Measured @
2,400 rpm
Gross Power
91.2 hp
All tractors

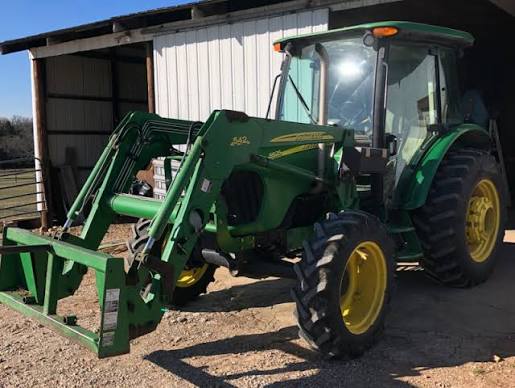

John Deere 5525 Utility Tractor
1 / 5
Image 1 of 5
Image: machinerylink.com

Specifications

23 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity25.5 gal
3 Point Hitch Lift Capacity @ 24 inches3,374 lb
Tire Size Front - 2wd / 4wd7.50-16 6PR F2

Engine

Engine specifications
Engine Model4045
Displacement275 in³
Power Measured @2,400 rpm
Gross Power91.2 hp
Number of Cylinders4
AspirationTurbocharged
Torque Measured @1,401 rpm
Max Torque229 lb-ft
PTO Power75.1 hp

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity25.0 gal/min
Number of Remote Control Valves6
Relief Valve Pressure2,828 psi
Relief Valve Setting2,828 psi

Dimensions

Dimensions specifications
Wheelbase86 in
Tire SizeFront 11.2-24 6PR R1 Rear 420/90R30 R1 Radial

Transmission

Transmission specifications
Number of Forward Gears9
Transmission TypeSyncShuttle
Number of Reverse Gears3

Tires & Wheels

Tires & Wheels specifications
Rear Tires Size420/90R30 R1 Radial

Axles

Axles specifications
Final DriveInboard Planetary
