John Deere

7420

Tractor

Displacement
415 in³
Power Measured @
2,100 rpm
Gross Power
135.0 hp
All tractors

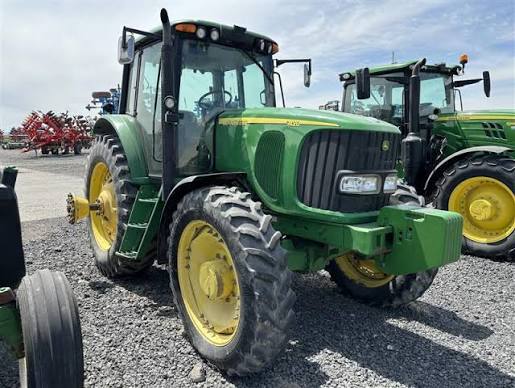

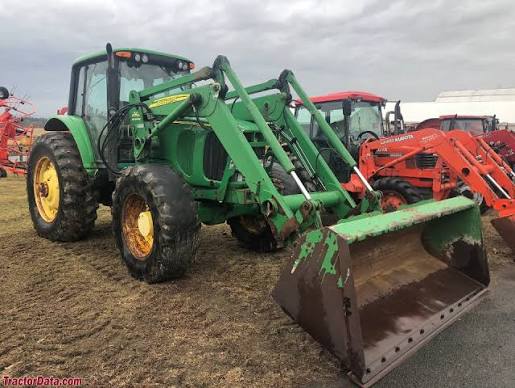

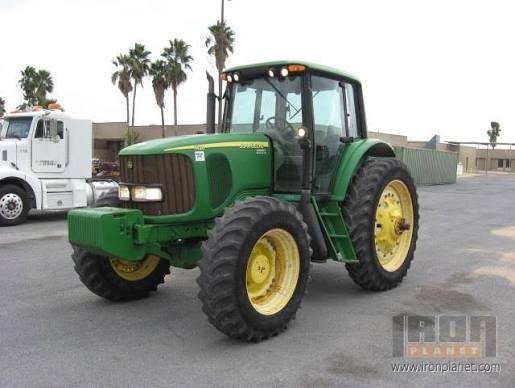

John Deere 7420 Tractor
1 / 5
Image 1 of 5
Image: machinerylink.com

Specifications

18 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity66.1 gal
3 Point Hitch Lift Capacity @ 24 inches8,960 lb
Turning Radius181 in

Engine

Engine specifications
Displacement415 in³
Power Measured @2,100 rpm
Gross Power135.0 hp
Number of Cylinders6
Aspirationturbocharged
Torque Measured @1,398 rpm
Max Torque414 lb-ft
Engine Make2240
PTO Power116.6 hp

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity26.7 gal/min
Number of Remote Control Valves43,500
Relief Valve Setting2,900 psi

Transmission

Transmission specifications
Number of Forward Gears16
Transmission TypePowerQuad Plus
Number of Reverse Gears16
