John Deere

750K XLT

Crawler Dozer

Max Speed - Forward
6.0 mph
Net Power
155.0 hp
All crawler dozers

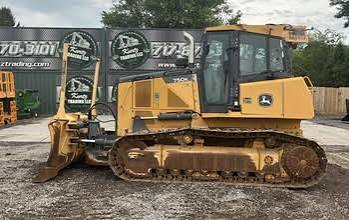

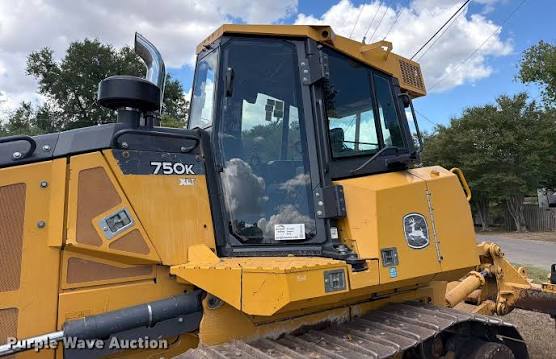

John Deere 750K XLT Crawler Dozer
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

25 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity94.1 gal
Cooling System Fluid Capacity9.7 gal
Engine Oil Capacity6.5 gal
Hydraulic Fluid Capacity28.1 gal

Engine

Engine specifications
Engine ModelPVX 6068
Displacement415 in³
Power Measured @1,800 rpm
Net Power155.0 hp
Torque Measured @1,400 rpm
Max Torque531 lb-ft

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity36.5 gal/min
Relief Valve Pressure275 psi

Dimensions

Dimensions specifications
Ground Clearance15 in
Height - Top of Cab121 in
Width Over Tracks96 in
Length w/ Blade194 in

Transmission

Transmission specifications
Max Speed - Forward6.0 mph
Max Speed - Reverse6.8 mph

Undercarriage

Undercarriage specifications
Ground Pressure7 psi
Track Gauge74 in
Number of Track Rollers per Side8
Number of Shoes per Side45
Standard Shoe Size22 in
Ground Contact Area5,323 in³
Track Pitch8 in
