John Deere

7830 165 PTO hp

Tractor

Displacement
415 in³
Power Measured @
2,100 rpm
Gross Power
205.0 hp
All tractors

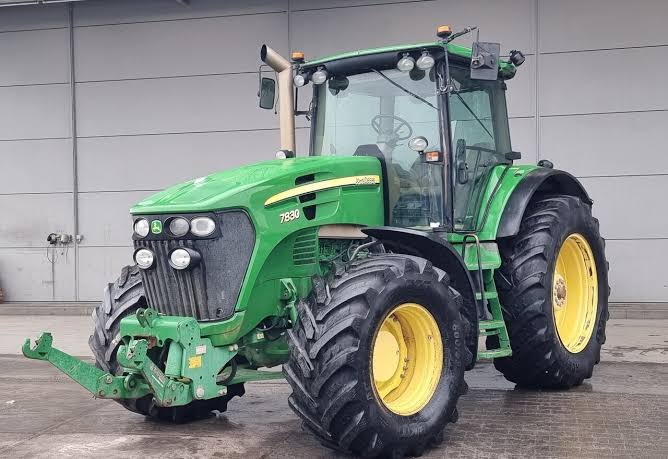

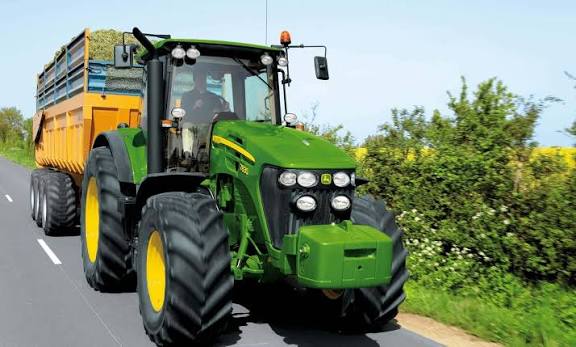

John Deere 7830 165 PTO hp Tractor
1 / 5
Image 1 of 5
Image: machinerypete.com

Specifications

20 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity103.1 gal
3 Point Hitch Lift Capacity @ 24 inches10,986 lb
Tire Size Front - 2wd / 4wd11.00-16 (F2)

Engine

Engine specifications
Displacement415 in³
Power Measured @2,100 rpm
Gross Power205.0 hp
Number of Cylinders6
Aspirationturbocharged air-to-air aftercooled
Torque Measured @1,598 rpm
Max Torque608 lb-ft
Engine Make2240
PTO Power166.9 hp

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity32.0 gal/min
Number of Remote Control Valves2
Relief Valve Setting2,914 psi

Transmission

Transmission specifications
Max Speed19.0 mph
Number of Forward Gears16
Transmission TypePowrQuad Plus
Number of Reverse Gears16

Tires & Wheels

Tires & Wheels specifications
Rear Tires Size480/80R46 (R1)
