John Deere

8430 250 PTO hp - PST

Tractor

Displacement
549 in³
Power Measured @
2,100 rpm
Gross Power
305.0 hp
All tractors

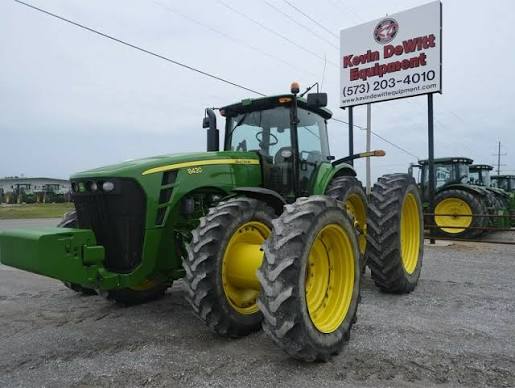

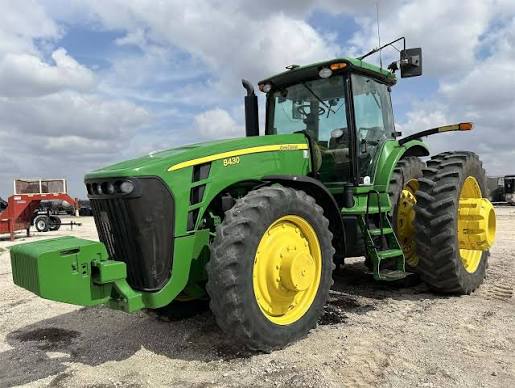

John Deere 8430 250 PTO hp - PST Tractor
1 / 5
Image 1 of 5
Image: allmachines.com

Specifications

21 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity180.0 gal
3 Point Hitch Lift Capacity @ 24 inches15,201 lb
Turning Radius253 in
Tire Size Front - 2wd / 4wd420/85R34

Engine

Engine specifications
Displacement549 in³
Power Measured @2,100 rpm
Gross Power305.0 hp
Number of Cylinders6
Aspirationturbocharged air-to-air aftercooled
Torque Measured @1,500 rpm
Max Torque930 lb-ft
Engine Make2240
PTO Power253.1 hp

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity44.0 gal/min
Number of Remote Control Valves3
Relief Valve Setting2,155 psi

Dimensions

Dimensions specifications
Wheelbase121 in

Transmission

Transmission specifications
Number of Forward Gears16
Transmission TypePowershift
Number of Reverse Gears4

Tires & Wheels

Tires & Wheels specifications
Rear Tires Size480/80R50
