John Deere

850J LGP

Crawler Dozer

Operating Weight
45,067 lb
Max Speed - Forward
6.3 mph
Gross Power
210.0 hp
Net Power
200.0 hp
All crawler dozers

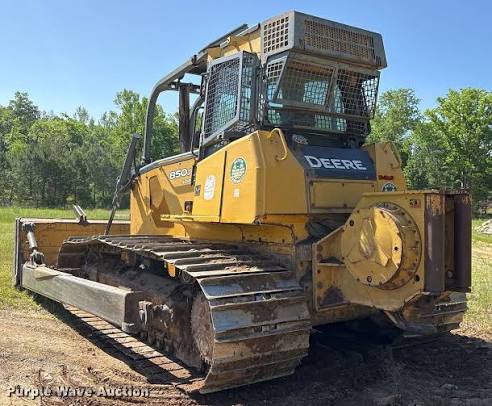

John Deere 850J LGP Crawler Dozer
1 / 5
Image 1 of 5
Image: ironplanet.com

Specifications

40 data points

Operating Specifications

Operating Specifications specifications
Operating Weight45,067 lb
Fuel Capacity98.0 gal
Cooling System Fluid Capacity9.2 gal
Final Drives Fluid Capacity4.4 gal
Engine Oil Capacity7.1 gal
Hydraulic Fluid Capacity27.9 gal
Operating Voltage24 V
Alternator Supplied Amperage80 A

Engine

Engine specifications
Engine Model6090
Displacement550 in³
Power Measured @1,800 rpm
Gross Power210.0 hp
Net Power200.0 hp
Number of Cylinders6
AspirationTurbocharger w/ aftercooler
Torque Measured @1,500 rpm
Max Torque675 lb-ft
MakeDeere

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity46.0 gal/min
Relief Valve Pressure3,625 psi
Pump TypePiston

Dimensions

Dimensions specifications
Ground Clearance17 in
Height - Top of Cab126 in
Length of Track on Ground130 in
Width Over Tracks131 in
Length w/ Blade226 in

Transmission

Transmission specifications
Max Speed - Forward6.3 mph
Max Speed - Reverse6.3 mph
Transmission TypeHydrostatic

Undercarriage

Undercarriage specifications
Ground Pressure5 psi
Track Gauge95 in
Number of Track Rollers per Side8
Number of Shoes per Side45
Standard Shoe Size36 in
Ground Contact Area9,310 in³
Track Pitch8 in

Standard Blade

Standard Blade specifications
Width168 in
Height48 in
Capacity5.90 yd³
Blade Angle (both directions)24 °
