John Deere

890

Excavator

Operating Weight
92,600 lb
Net Power
250.0 hp
All excavators

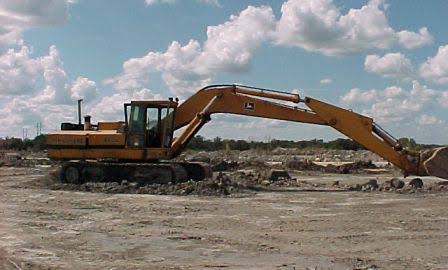

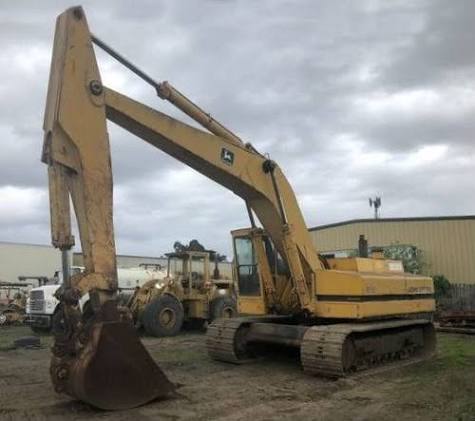

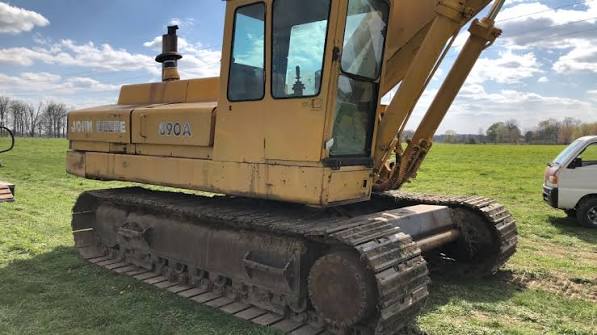

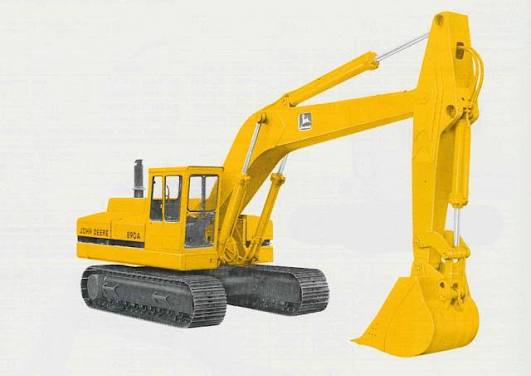

John Deere 890 Excavator
1 / 5
Image 1 of 5
Image: brokentractor.com

Specifications

21 data points

Operating Specifications

Operating Specifications specifications
Operating Weight92,600 lb
Fuel Capacity128.0 gal
Hydraulic Pump Flow Capacity55.0 gal/min
Hydraulic System Fluid Capacity92.0 gal
Hydraulic System Relief Valve Pressure2,700 psi
Engine Oil Capacity36.0 gal
Cooling System Fluid Capacity19.0 gal
Operating Voltage24 V
Swing Drive Fluid Capacity9.3 gal
Alternator Supplied Amperage42 A

Engine

Engine specifications
Engine Model500 Series
Displacement619 in³
Power Measured @2,100 rpm
Net Power250.0 hp
AspirationTurbocharged with Aftercooler
Torque Measured @1,400 rpm
Max Torque810 lb-ft

Dimensions

Dimensions specifications
Width to Outside of Tracks144 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Shipping Length of Unit480 in
Shipping Height of Unit145 in

Swing Mechanism

Swing Mechanism specifications
Swing Speed6 rpm
