Kawasaki

92ZV-2

Wheel Loader

Operating Weight
58,025 lb
Bucket Capacity - heaped
6.00 yd³
Gross Power
300.0 hp
Net Power
284.0 hp
All wheel loaders

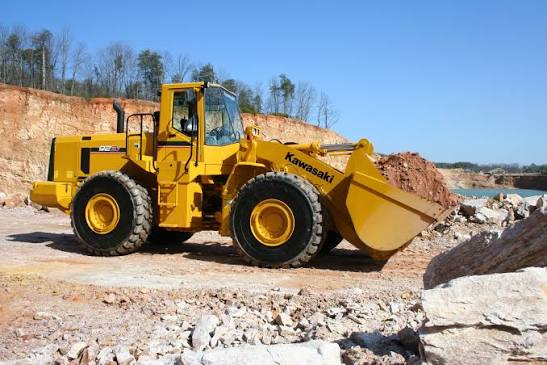

Kawasaki 92ZV-2 Wheel Loader
1 / 5
Image 1 of 5
Image: global.kawasaki.com

Specifications

49 data points

Operating Specifications

Operating Specifications specifications
Operating Weight58,025 lb
Fuel Capacity112.1 gal
Tire Size26.5-25-20PR
Hydraulic System Fluid Capacity68.2 gal
Static Tipping Weight43,560 lb
Operating Voltage24 V
Turning Radius238 in
Engine Oil Fluid Capacity9.8 gal
Rear Axle Oscillation24 °
Alternator Supplied Amperage75 A
Front Axle/Diff Fluid Capacity20.9 gal
Rear Axle/Diff Fluid Capacity22.5 gal
Cooling System Fluid Capacity19.1 gal
Transmission Fluid Capacity15.4 gal
Rated Bucket Capacity6.00 yd³

Engine

Engine specifications
Engine ModelQSM11
Displacement660 in³
Power Measured @2,000 rpm
Gross Power300.0 hp
Net Power284.0 hp
Number of Cylinders6
AspirationTurbocharged with Aftercooler
Torque Measured @1,400 rpm
MakeCummins
Torque Rise47.0 %

Weights

Weights specifications
Operating Weight58,025 lb

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity48.9 gal/min
Raise Time6.4 s
Lower Time3.3 s
Dump Time1.4 s
Relief Valve Setting3,000 psi
Pump TypeGear

Dimensions

Dimensions specifications
Ground Clearance19 in
Height - Top of Cab141 in
Wheelbase141 in
Width Over Tires120 in
Reach at Max Lift and Dump52 in
Length with Bucket on Ground356 in
Hinge Pin - Max Height179 in

Transmission

Transmission specifications
Max Speed - Forward22.9 mph
Max Speed - Reverse23.8 mph
Transmission TypePower Shift
Number of Forward Gears4
Number of Reverse Gears4

Bucket

Bucket specifications
Bucket Capacity - heaped6.00 yd³
Bucket Capacity - struck5.21 yd³
Dump Clearance at Max Raise128 in
Breakout Force50,900 lb
Bucket Width126 in
