Kioti
New Holland
TC35
Tractor
21 specifications
1 / 5

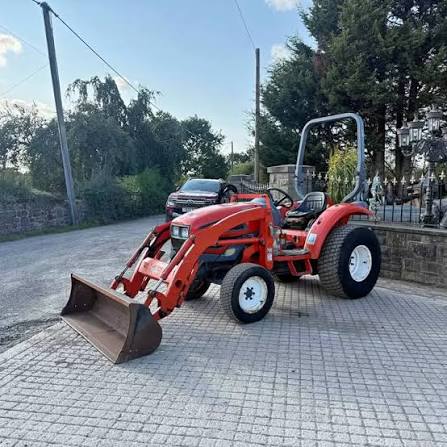

Image 1 of 5
Specifications
22 data points
Operating Specifications
| Operating Weight | 3,155 lb |
|---|---|
| Fuel Capacity | 8.0 gal |
| 3 Point Hitch Lift Capacity @ 24 inches | 1,764 lb |
| 3 Point Hitch Type | Cat I |
| Turning Radius | 115 in |
Engine
| Engine Model | TD1300LXA |
|---|---|
| Displacement | 79 in³ |
| Power Measured @ | 2,600 rpm |
| Gross Power | 25.0 hp |
| Number of Cylinders | 3 |
| PTO Power | 19.0 hp |
Hydraulic System
| Pump Flow Capacity | 13.0 gal/min |
|---|
Dimensions
| Ground Clearance | 14 in |
|---|---|
| Height - Top of Cab | 97 in |
| Wheelbase | 67 in |
| Overall Length | 10 in |
| Tire Size | front 7-14 rear 11.2-24 |
| Width Outside Frame | 55 in |
Transmission
| Max Speed | 14.3 mph |
|---|---|
| Number of Forward Gears | 8 |
| Transmission Type | synchro shuttle |
| Number of Reverse Gears | 8 |
