Kobelco

CK1100G-2

Crawler Crane

Power Measured @
2,100 rpm
All crawler cranes

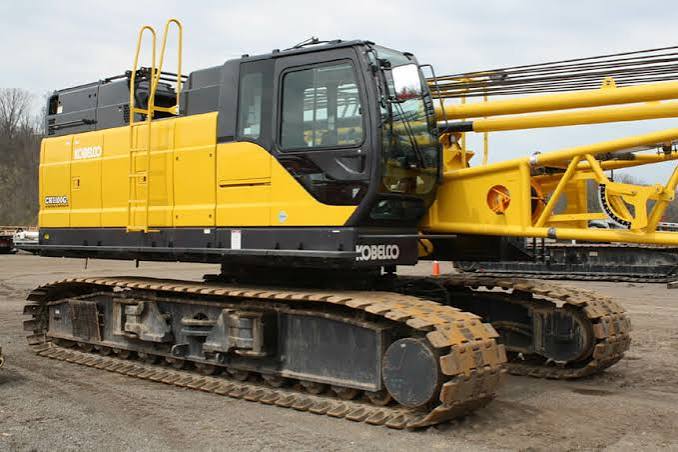

Kobelco CK1100G-2 Crawler Crane
1 / 5
Image 1 of 5
Image: thecraneclub.com

Specifications

28 data points

Engine

Engine specifications
Engine ModelJ08E-VV
Displacement469 in³
Power Measured @2,100 rpm
Gross Power285.0 hp
Number of Cylinders6
Torque Measured @1,600 rpm
Max Torque750 lb-ft
Bore5 in
Stroke5 in
Alternator90 A
Emission Tier LevelTire 4 Final
Air cleanerDry type with replaceable paper element
Starter6.8 hp
Fuel FilterReplaceable element

Dimensions

Dimensions specifications
Ground Clearance180 in
Overall Width206 in
Gradeability40.0 %
Counterweight Clearance46 in
Shoe width432 in
Center to center - idler to sprocket205 in
Overall length of crawler248 in

Undercarriage

Undercarriage specifications
Ground Pressure13 psi

Boom

Boom specifications
Boom Length480 in
Basic jib length359 in
Boom base section235 in
Boom tip section272 in
Jib base section190 in
Jib tip section198 in
