Komatsu

D20P-5

Crawler Dozer

Operating Weight
8,334 lb
Gross Power
39.0 hp
All crawler dozers

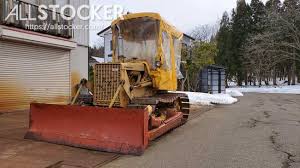

Komatsu D20P-5 Crawler Dozer
1 / 5
Image 1 of 5
Image: jikotrading.jp

Specifications

24 data points

Operating Specifications

Operating Specifications specifications
Operating Weight8,334 lb

Engine

Engine specifications
Engine Model4D92-2N
Displacement179 in³
Power Measured @2,450 rpm
Gross Power39.0 hp
Number of Cylinders4

Dimensions

Dimensions specifications
Ground Clearance16 in
Height - Top of Cab86 in
Length of Track on Ground67 in
Width Over Tracks72 in
Length w/ Blade127 in
Length w/o Blade98 in

Transmission

Transmission specifications
Transmission TypeDD
Number of Forward Gears3
Number of Reverse Gears2

Undercarriage

Undercarriage specifications
Ground Pressure3 psi
Track Gauge52 in
Number of Track Rollers per Side5
Number of Shoes per Side37
Standard Shoe Size20 in
Track Pitch5 in

Standard Blade

Standard Blade specifications
Width86 in
Height23 in
Capacity1.20 yd³
