Komatsu

D20PL-7

Crawler Dozer

Operating Weight
8,885 lb
Gross Power
40.0 hp
All crawler dozers

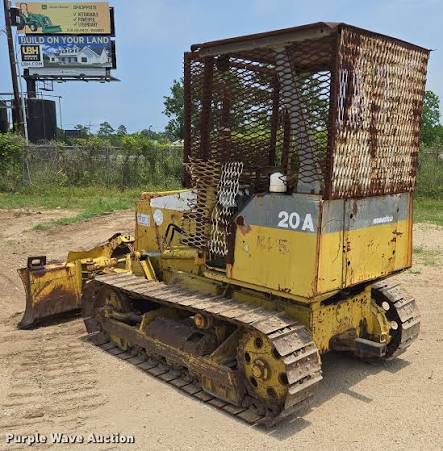

Komatsu D20PL-7 Crawler Dozer
1 / 5
Image 1 of 5
Image: tractorhouse.com

Specifications

26 data points

Operating Specifications

Operating Specifications specifications
Operating Weight8,885 lb
Max Speed4.7 mph
Fuel Capacity15.9 gal

Engine

Engine specifications
Engine Model4D95S
Displacement169 in³
Power Measured @2,450 rpm
Gross Power40.0 hp
Number of Cylinders4

Dimensions

Dimensions specifications
Ground Clearance15 in
Height - Top of Cab71 in
Length of Track on Ground72 in
Width to Outside of Tracks86 in
Length with Bucket on Ground100 in
Width Over Tracks86 in
Length w/ Blade137 in
Length w/o Blade104 in

Transmission

Transmission specifications
Transmission TypeDD
Number of Forward Gears3
Number of Reverse Gears2

Undercarriage

Undercarriage specifications
Track Gauge59 in
Number of Track Rollers per Side6
Standard Shoe Size28 in
Track Pitch5 in
Length of Track on Ground72 in

Standard Blade

Standard Blade specifications
Width98 in
Height23 in
