Komatsu

D20PLL-6

Crawler Dozer

Operating Weight
10,296 lb
Gross Power
40.0 hp
All crawler dozers

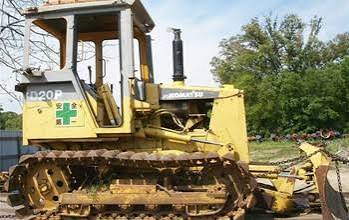

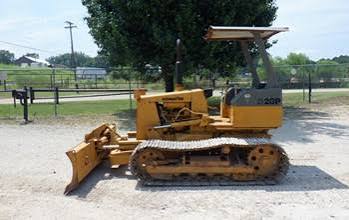

Komatsu D20PLL-6 Crawler Dozer
1 / 5
Image 1 of 5
Image: makana.com

Specifications

23 data points

Operating Specifications

Operating Specifications specifications
Operating Weight10,296 lb

Engine

Engine specifications
Engine Model4D95S-W1
Displacement181 in³
Power Measured @2,450 rpm
Gross Power40.0 hp
Number of Cylinders4

Dimensions

Dimensions specifications
Ground Clearance15 in
Height - Top of Cab100 in
Length of Track on Ground83 in
Width Over Tracks114 in
Length w/ Blade144 in
Length w/o Blade117 in

Transmission

Transmission specifications
Transmission TypeDD
Number of Forward Gears3
Number of Reverse Gears2

Undercarriage

Undercarriage specifications
Track Gauge73 in
Number of Track Rollers per Side7
Number of Shoes per Side43
Number of Carrier Rollers per Side2
Standard Shoe Size41 in
Track Pitch5 in

Standard Blade

Standard Blade specifications
Width126 in
Height20 in
