Komatsu

D20Q-5

Crawler Loader

Operating Weight
8,995 lb
Bucket Capacity - heaped
0.60 yd³
Net Power
39.0 hp
All crawler loaders

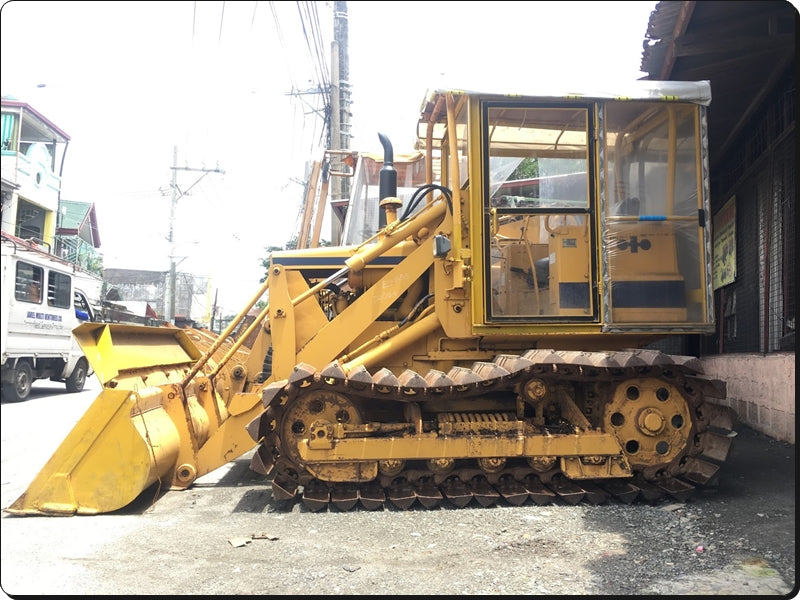

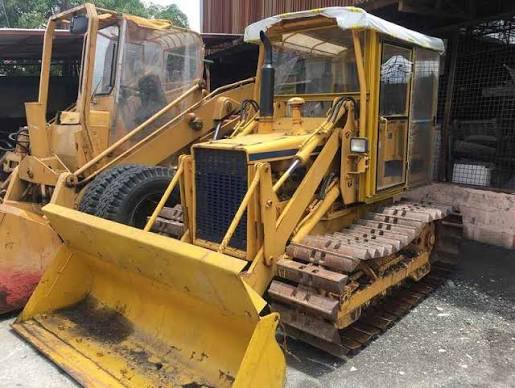

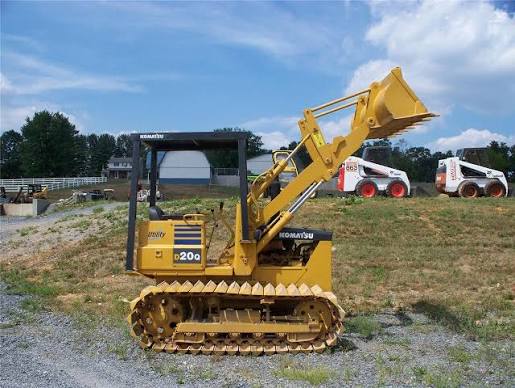

Komatsu D20Q-5 Crawler Loader
1 / 5
Image 1 of 5
Image: catalogoeservico.com.br

Specifications

21 data points

Operating Specifications

Operating Specifications specifications
Operating Weight8,995 lb
Bucket Capacity - heaped0.60 yd³
Max Speed4.6 mph
Fuel Capacity15.9 gal
Static Tipping Load5,160 lb
Breakout Force Bucket8,950 lb
Cooling System Fluid Capacity3.5 gal

Engine

Engine specifications
Engine Model4D94
Displacement179 in³
Net Power39.0 hp

Dimensions

Dimensions specifications
Ground Clearance16 in
Height - Top of Cab86 in
Width to Outside of Tracks79 in
Length with Bucket on Ground137 in
Reach at Dump Height26 in
Clearance at Full Height and Dump89 in

Undercarriage

Undercarriage specifications
Length of Track on Ground67 in
Track Gauge59 in
Track Shoe Width20 in
Ground Pressure4 psi
Number of Track Rollers per Side5
