Komatsu

D20S-5

Crawler Loader

Operating Weight
8,312 lb
Bucket Capacity - heaped
0.60 yd³
Net Power
39.0 hp
All crawler loaders

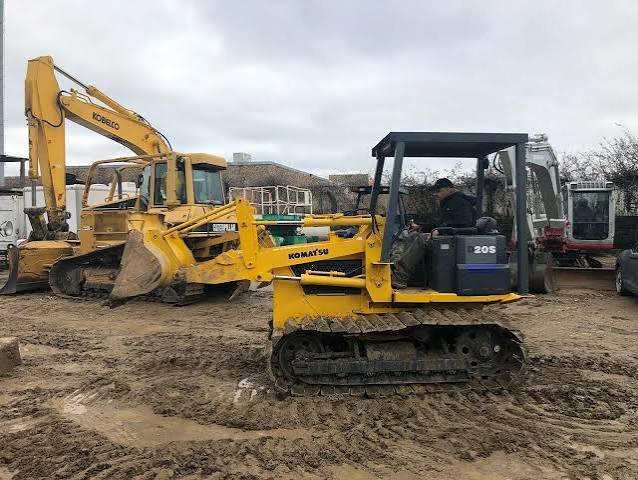

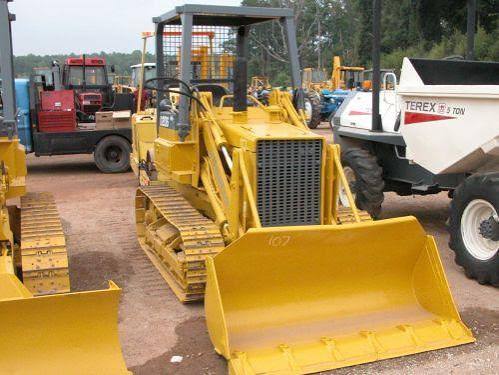

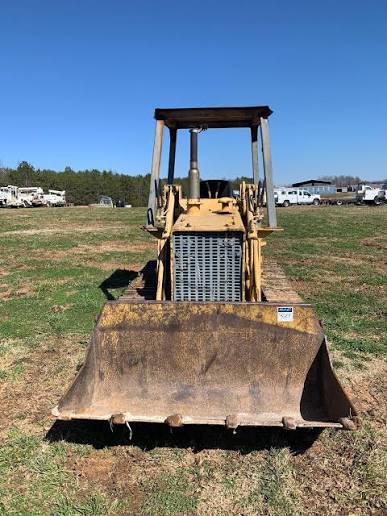

Komatsu D20S-5 Crawler Loader
1 / 5
Image 1 of 5
Image: tractortip.com

Specifications

21 data points

Operating Specifications

Operating Specifications specifications
Operating Weight8,312 lb
Bucket Capacity - heaped0.60 yd³
Max Speed4.6 mph
Fuel Capacity15.9 gal
Static Tipping Load4,780 lb
Breakout Force Bucket7,870 lb
Cooling System Fluid Capacity3.5 gal

Engine

Engine specifications
Engine Model4D94
Displacement179 in³
Net Power39.0 hp

Dimensions

Dimensions specifications
Ground Clearance13 in
Height - Top of Cab85 in
Width to Outside of Tracks64 in
Length with Bucket on Ground141 in
Reach at Dump Height30 in
Clearance at Full Height and Dump84 in

Undercarriage

Undercarriage specifications
Length of Track on Ground67 in
Track Gauge52 in
Track Shoe Width12 in
Ground Pressure5 psi
Number of Track Rollers per Side5
