Komatsu
Mitsubishi
BD2HS-HB1

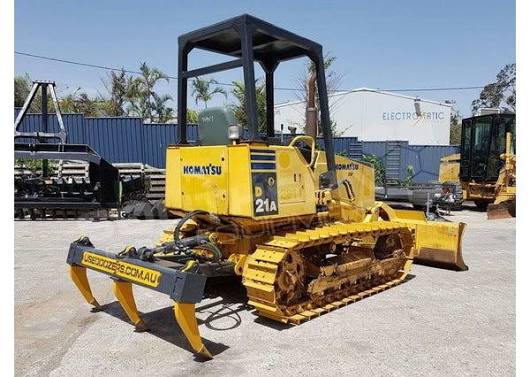

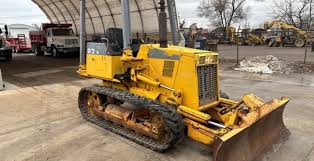

Crawler Dozer
17 specifications
1 / 5
Image 1 of 5
Specifications
31 data points
Operating Specifications
| Operating Weight | 7,981 lb |
|---|---|
| Fuel Capacity | 15.9 gal |
| Cooling System Fluid Capacity | 3.5 gal |
Engine
| Engine Model | 4D92-2P |
|---|---|
| Displacement | 179 in³ |
| Power Measured @ | 2,450 rpm |
| Gross Power | 39.0 hp |
| Number of Cylinders | 4 |
| Max Torque | 108 lb-ft |
Hydraulic System
| Pump Flow Capacity | 14.1 gal/min |
|---|---|
| Relief Valve Pressure | 2,205 psi |
Dimensions
| Ground Clearance | 13 in |
|---|---|
| Height - Top of Cab | 85 in |
| Length of Track on Ground | 67 in |
| Width Over Tracks | 64 in |
| Length w/ Blade | 134 in |
| Length w/o Blade | 97 in |
Transmission
| Max Speed - Forward | 2.8 mph |
|---|---|
| Max Speed - Reverse | 3.4 mph |
| Transmission Type | HS |
| Number of Forward Gears | 2 |
| Number of Reverse Gears | 2 |
Undercarriage
| Ground Pressure | 4 psi |
|---|---|
| Track Gauge | 52 in |
| Number of Track Rollers per Side | 5 |
| Number of Shoes per Side | 37 |
| Standard Shoe Size | 12 in |
| Track Pitch | 5 in |
Standard Blade
| Width | 86 in |
|---|---|
| Height | 23 in |
| Capacity | 0.99 yd³ |
