Komatsu
Mitsubishi
BD2HS-HB1

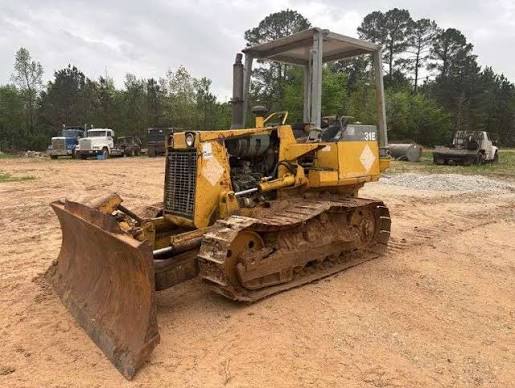

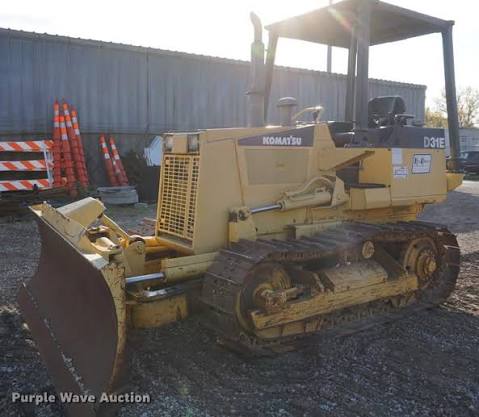

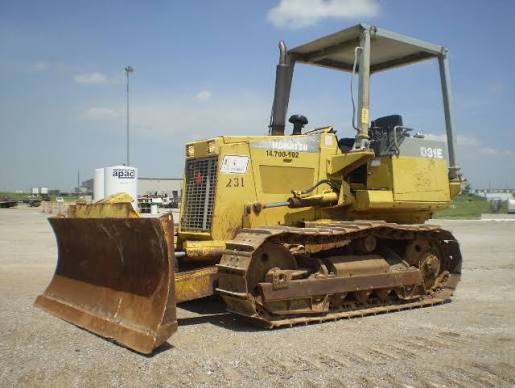

Crawler Dozer
17 specifications
1 / 5
Image 1 of 5
Specifications
24 data points
Operating Specifications
| Operating Weight | 13,867 lb |
|---|---|
| Fuel Capacity | 30.4 gal |
| Cooling System Fluid Capacity | 5.9 gal |
| Final Drives Fluid Capacity | 2.6 gal |
| Engine Oil Capacity | 3.7 gal |
Engine
| Engine Model | S4D102E |
|---|---|
| Displacement | 239 in³ |
| Power Measured @ | 2,350 rpm |
| Net Power | 70.0 hp |
| Number of Cylinders | 4 |
| Aspiration | Turbocharged |
Hydraulic System
| Relief Valve Pressure | 2,495 psi |
|---|---|
| Pump Type | gear type |
Transmission
| Max Speed - Forward | 4.1 mph |
|---|---|
| Max Speed - Reverse | 4.5 mph |
| Transmission Type | Hydroshift |
| Number of Forward Gears | 3 |
| Number of Reverse Gears | 3 |
Undercarriage
| Ground Pressure | 6 psi |
|---|---|
| Track Gauge | 57 in |
| Number of Track Rollers per Side | 5 |
| Number of Shoes per Side | 37 |
| Standard Shoe Size | 13 in |
| Ground Contact Area | 1,924 in³ |
