Komatsu

D355A-5

Crawler Dozer

Operating Weight
9,806 lb
Gross Power
410.0 hp
All crawler dozers

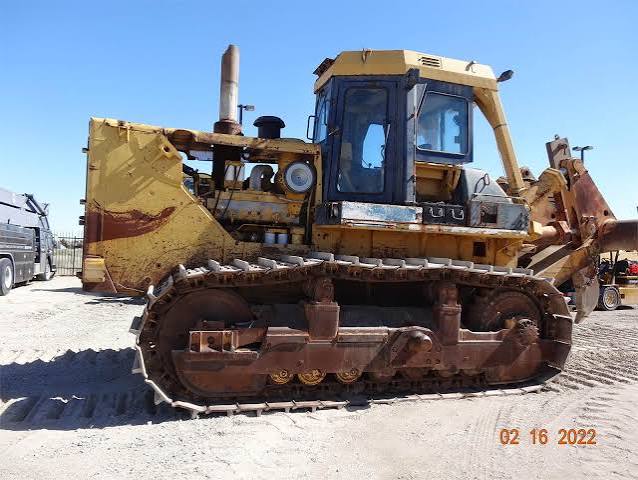

Komatsu D355A-5 Crawler Dozer
1 / 5
Image 1 of 5
Image: m.made-in-china.com

Specifications

23 data points

Operating Specifications

Operating Specifications specifications
Operating Weight9,806 lb

Engine

Engine specifications
Engine ModelSA6D155-4
Displacement1,175 in³
Power Measured @2,000 rpm
Gross Power410.0 hp
Number of Cylinders6

Dimensions

Dimensions specifications
Ground Clearance23 in
Height - Top of Cab163 in
Length of Track on Ground133 in
Width Over Tracks120 in
Length w/ Blade362 in
Length w/o Blade223 in

Transmission

Transmission specifications
Transmission TypeTF
Number of Forward Gears4
Number of Reverse Gears4

Undercarriage

Undercarriage specifications
Track Gauge90 in
Number of Track Rollers per Side7
Number of Shoes per Side39
Number of Carrier Rollers per Side2
Standard Shoe Size24 in
Track Pitch10 in

Standard Blade

Standard Blade specifications
Width170 in
Height74 in
