Komatsu

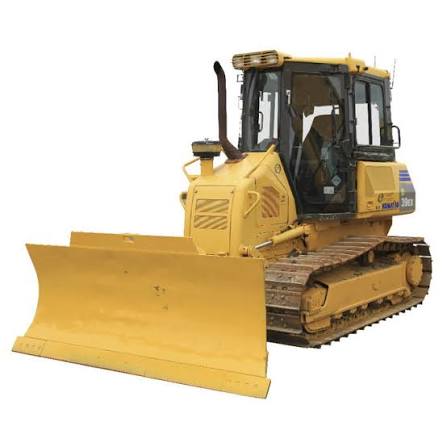

D39Ex-23
- Operating Weight
- 20,745 lb
- Max Speed - Forward
- 5.3 mph
- Gross Power
- 107.0 hp
- Net Power
- 105.0 hp
1 / 5
Image 1 of 5
Specifications
26 data points
Operating Specifications
| Operating Weight | 20,745 lb |
|---|---|
| Fuel Capacity | 50.2 gal |
| Cooling System Fluid Capacity | 9.0 gal |
| Final Drives Fluid Capacity | 1.0 gal |
| Engine Oil Capacity | 3.0 gal |
| Hydraulic Fluid Capacity | 15.9 gal |
Engine
| Engine Model | SAA4D95LE |
|---|---|
| Displacement | 199 in³ |
| Power Measured @ | 2,200 rpm |
| Gross Power | 107.0 hp |
| Net Power | 105.0 hp |
| Make | Komatsu |
Dimensions
| Ground Clearance | 16 in |
|---|---|
| Height - Top of Cab | 113 in |
| Width Over Tracks | 107 in |
| Length w/o Blade | 173 in |
Transmission
| Max Speed - Forward | 5.3 mph |
|---|---|
| Max Speed - Reverse | 5.3 mph |
| Number of Forward Gears | 3 |
| Number of Reverse Gears | 3 |
Undercarriage
| Ground Pressure | 6 psi |
|---|---|
| Track Gauge | 65 in |
| Number of Track Rollers per Side | 6 |
| Number of Shoes per Side | 39 |
| Standard Shoe Size | 20 in |
| Ground Contact Area | 3,708 in³ |
