Komatsu
Mitsubishi
BD2HS-HB1
Crawler Dozer
17 specifications
1 / 5

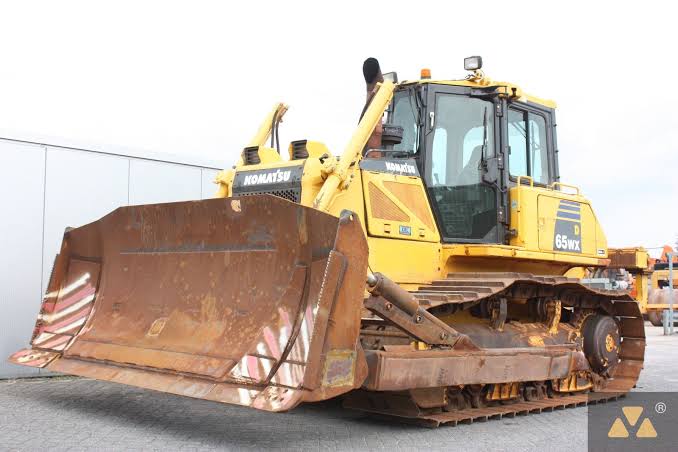

Image 1 of 5
Specifications
24 data points
Operating Specifications
| Fuel Capacity | 109.7 gal |
|---|---|
| Cooling System Fluid Capacity | 9.6 gal |
| Final Drives Fluid Capacity | 7.2 gal |
| Engine Oil Capacity | 7.4 gal |
Engine
| Engine Model | SAA6D114E-3 |
|---|---|
| Displacement | 505 in³ |
| Power Measured @ | 1,950 rpm |
| Gross Power | 207.0 hp |
| Net Power | 219.0 hp |
| Number of Cylinders | 6 |
Dimensions
| Ground Clearance | 17 in |
|---|---|
| Height - Top of Cab | 125 in |
| Width Over Tracks | 81 in |
| Length w/ Blade | 217 in |
Transmission
| Max Speed - Forward | 7.0 mph |
|---|---|
| Max Speed - Reverse | 8.3 mph |
| Number of Forward Gears | 3 |
| Number of Reverse Gears | 3 |
Undercarriage
| Ground Pressure | 6 psi |
|---|---|
| Track Gauge | 81 in |
| Number of Track Rollers per Side | 7 |
| Number of Shoes per Side | 42 |
| Standard Shoe Size | 30 in |
| Ground Contact Area | 7,021 in³ |
