Komatsu
TCM
FCB15A4
Forklift
14 specifications
1 / 5

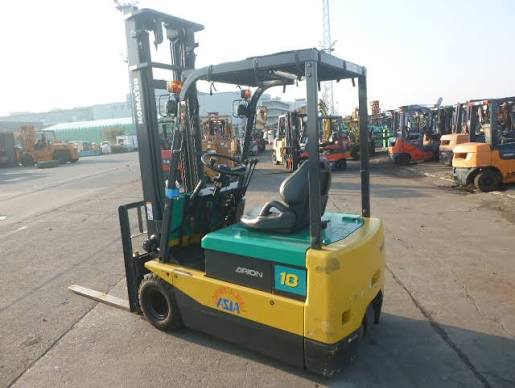

Image 1 of 5
Specifications
22 data points
Operating Specifications
| Operating Weight | 7,330 lb |
|---|---|
| Max Speed | 9.0 mph |
| Number of Front Wheels | 2 |
| Number of Rear Wheels | 2 |
| Tire Type | Cuhion Solid |
Engine
| Fuel Type | Electric 36V |
|---|
Dimensions
| Ground Clearance | 4 in |
|---|---|
| Wheelbase | 52 in |
| Overall Width | 43 in |
| Turning Radius | 61 in |
| Overall Height - mast lowered | 88 in |
| Length to Fork Face | 77 in |
| Height to Top of Overhead Guard | 77 in |
| Max Fork Height | 131 in |
| Right Angle Stack | 77 in |
Mast
| Load Capacity | 3,500 lb |
|---|---|
| Load Center | 24 in |
| Lift Speed | 0.7 mph |
| Mast Tip Forward | 5 ° |
| Mast Tip Rear | 7 ° |
| Lower Speed | 1.1 mph |
| Number of Mast Sections | 2 |
