Komatsu
TCM
FCB15A4
Forklift
14 specifications
1 / 5

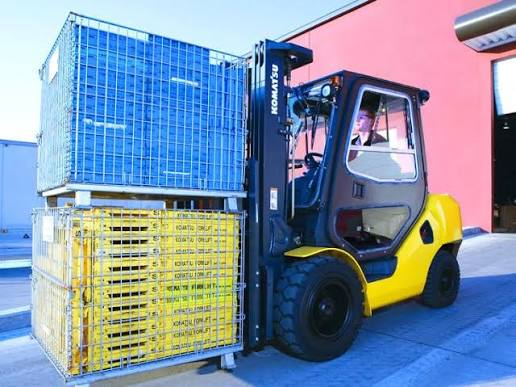

Image 1 of 5
Specifications
29 data points
Operating Specifications
| Operating Weight | 7,340 lb |
|---|---|
| Max Speed | 10.3 mph |
| Number of Front Wheels | 2 |
| Number of Rear Wheels | 2 |
| Tire Type | Cushion |
Engine
| Engine Model | K21 |
|---|---|
| Displacement | 126 in³ |
| Power Measured @ | 2,950 rpm |
| Number of Cylinders | 4 |
| Torque Measured @ | 1,600 rpm |
| Power | 60.1 hp |
| Fuel Type | Gasoline |
| Torque | 115 lb-ft |
Dimensions
| Ground Clearance | 4 in |
|---|---|
| Wheelbase | 55 in |
| Overall Width | 42 in |
| Turning Radius | 76 in |
| Overall Height - mast lowered | 86 in |
| Length to Fork Face | 90 in |
| Height to Top of Overhead Guard | 79 in |
| Max Fork Height | 128 in |
| Right Angle Stack | 94 in |
Mast
| Load Capacity | 4,000 lb |
|---|---|
| Load Center | 24 in |
| Lift Speed | 1.4 mph |
| Mast Tip Forward | 6 ° |
| Mast Tip Rear | 10 ° |
| Lower Speed | 1.1 mph |
| Number of Mast Sections | 2 |
