Komatsu

H655S

Excavator

Operating Weight
1,510,167 lb
Max Digging Depth
355 in
Net Power
3,714.1 hp
All excavators

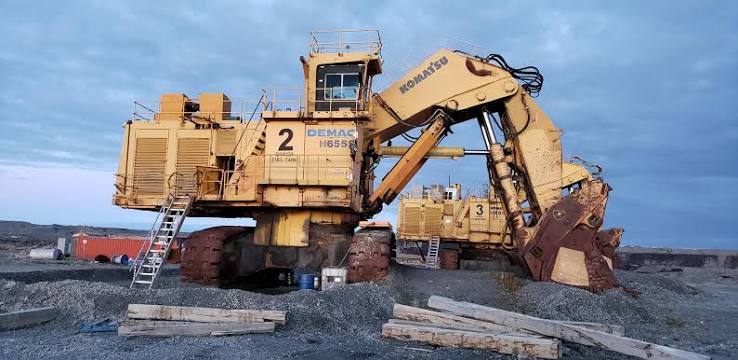

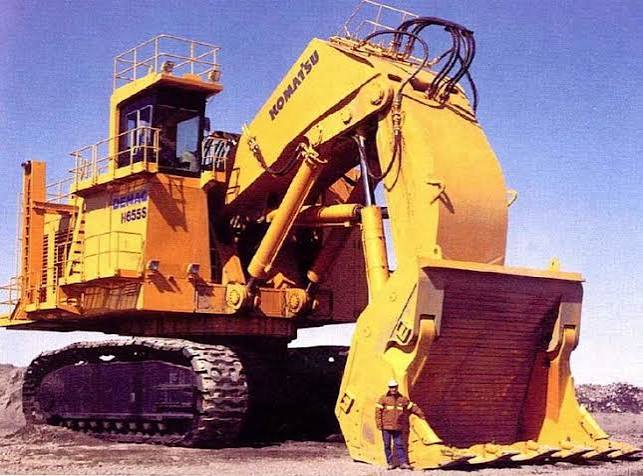

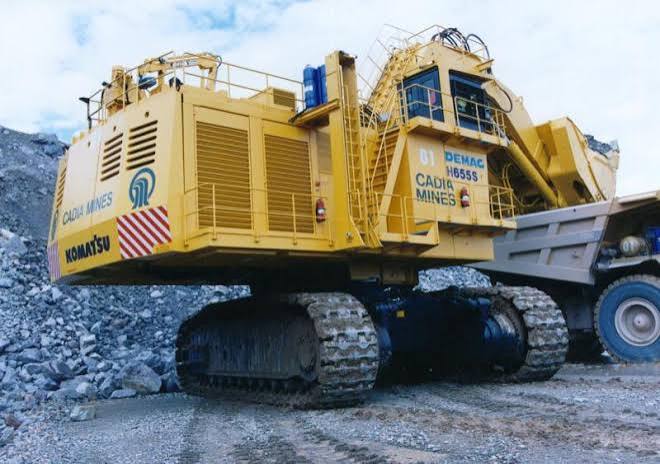

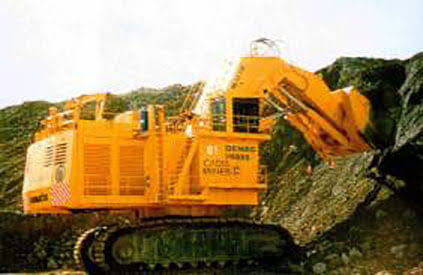

Komatsu H655S Excavator
1 / 5
Image 1 of 5
Image: snabus.ru

Specifications

38 data points

Operating Specifications

Operating Specifications specifications
Operating Weight1,510,167 lb
Fuel Capacity2,905.6 gal
Hydraulic Pump Flow Capacity1,901.9 gal/min
Hydraulic System Fluid Capacity2,205.7 gal
Hydraulic System Relief Valve Pressure4,495 psi
Swing Speed4 rpm

Engine

Engine specifications
Power Measured @1,800 rpm
Gross Power3,730.9 hp
Net Power3,714.1 hp
Number of Cylinders16
AspirationTurbocharged

Dimensions

Dimensions specifications
Ground Clearance46 in
Length of Track on Ground316 in
Width to Outside of Tracks307 in
Removal Counterweight Clearance141 in
Upper Structure Ground Clearance139 in
Length of Tracks414 in

Undercarriage

Undercarriage specifications
Ground Pressure35 psi
Track Gauge248 in
Shoe Size59 in
Loading Shovel Operating Weight1,510,166 lb
Loading Shovel Shoe Width59 in
Loading Shovel Ground Pressure35 psi

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth355 in
Max Reach Along Ground807 in
Max Loading Height504 in
Max Vertical Wall Digging Depth60 in
Max Cutting Height756 in
Shipping Length of Unit918 in
Shipping Height of Unit493 in

Bucket

Bucket specifications
Reference Bucket Capacity43.20 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed4 rpm

Loading Shovel

Loading Shovel specifications
Max Dig Depth107 in
Max Cutting Height807 in
Max Dump Height552 in
Max Dig Reach662 in
Height to Top of Boom - shovel414 in
Overall Length - shovel701 in
