Komatsu

PC240NLC-7 SLF

Excavator

Operating Weight
57,583 lb
Max Digging Depth
575 in
Net Power
168.0 hp
All excavators
Komatsu PC240NLC-7 SLF Excavator
1 / 5

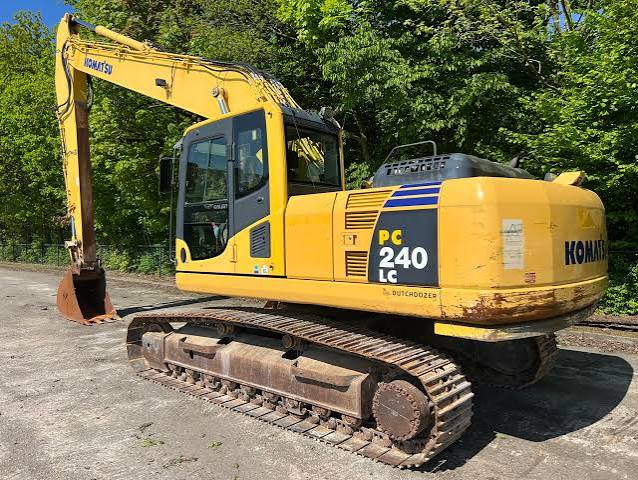

Image 1 of 5
Image: hesselberg.no

Specifications

40 data points

Operating Specifications

Operating Specifications specifications
Operating Weight57,583 lb
Fuel Capacity105.7 gal
Hydraulic Pump Flow Capacity116.3 gal/min
Hydraulic System Fluid Capacity37.8 gal
Hydraulic System Relief Valve Pressure5,405 psi
Engine Oil Capacity6.4 gal
Cooling System Fluid Capacity8.2 gal
Operating Voltage24 V
Swing Drive Fluid Capacity1.8 gal
Alternator Supplied Amperage60 A

Engine

Engine specifications
Engine ModelSAA6D102E-2
Displacement359 in³
Power Measured @2,000 rpm
Net Power168.0 hp
AspirationTurbocharged with aftercooler

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab119 in
Length of Track on Ground144 in
Tail Swing Radius117 in
Width to Outside of Tracks118 in
Removal Counterweight Clearance44 in

Undercarriage

Undercarriage specifications
Ground Pressure9 psi
Track Gauge95 in
Number of Track Rollers per Side9
Max Travel Speed3.5 mph
Shoe Size24 in
Number of Shoes per Side49
Number of Carrier Rollers per Side2
Drawbar Pull45,349 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth575 in
Max Reach Along Ground719 in
Max Loading Height506 in
Max Vertical Wall Digging Depth409 in
Max Cutting Height591 in
Shipping Length of Unit568 in
Shipping Height of Unit127 in

Bucket

Bucket specifications
Reference Bucket Capacity0.50 yd³
Maximum Bucket Capacity0.60 yd³
Minimum Bucket Capacity0.50 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed12 rpm
