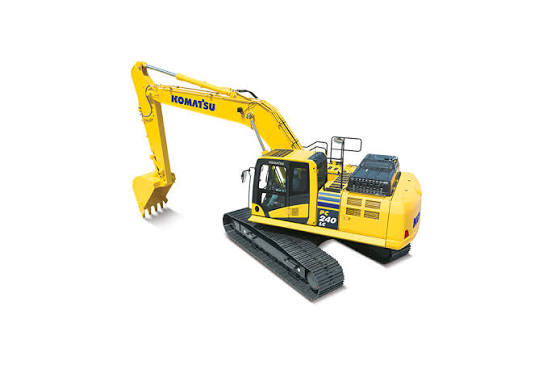

KomatsuKomatsu
PC240LC-7
Excavator
57 specifications

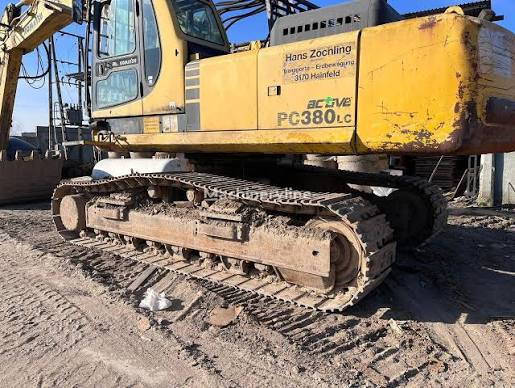

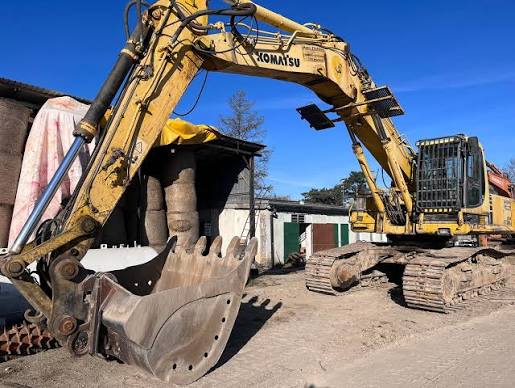

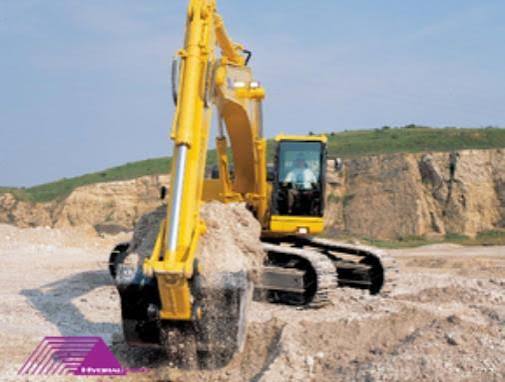

Komatsu
PC380LC-7
- Operating Weight
- 87,560 lb
- Max Digging Depth
- 245 in
- Max Digging Depth
- 259 in
- Net Power
- 242.0 hp
1 / 5
Image 1 of 5
Specifications
50 data points
Operating Specifications
| Operating Weight | 87,560 lb |
|---|---|
| Fuel Capacity | 159.9 gal |
| Hydraulic Pump Flow Capacity | 141.6 gal/min |
| Hydraulic System Fluid Capacity | 49.7 gal |
| Engine Oil Capacity | 8.5 gal |
| Cooling System Fluid Capacity | 8.5 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 3.6 gal |
| Alternator Supplied Amperage | 60 A |
Engine
| Engine Model | SAA6D114E-2 |
|---|---|
| Displacement | 505 in³ |
| Power Measured @ | 1,900 rpm |
| Net Power | 242.0 hp |
| Aspiration | Turbocharged with aftercooler |
Dimensions
| Ground Clearance | 29 in |
|---|---|
| Height - Top of Cab | 130 in |
| Length of Track on Ground | 172 in |
| Tail Swing Radius | 137 in |
| Width to Outside of Tracks | 118 in |
| Removal Counterweight Clearance | 53 in |
Undercarriage
| Ground Pressure | 10 psi |
|---|---|
| Track Gauge | 94 in |
| Number of Track Rollers per Side | 8 |
| Max Travel Speed | 2.7 mph |
| Shoe Size | 24 in |
| Number of Shoes per Side | 49 |
| Number of Carrier Rollers per Side | 2 |
| Drawbar Pull | 74,800 lb |
Boom/Stick Excavator Option 1
| Max Digging Depth | 245 in |
|---|---|
| Max Reach Along Ground | 393 in |
| Max Loading Height | 265 in |
| Max Vertical Wall Digging Depth | 197 in |
| Max Cutting Height | 383 in |
| Shipping Length of Unit | 445 in |
| Shipping Height of Unit | 134 in |
Swing Mechanism
| Swing Speed | 10 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 259 in |
|---|---|
| Max Vertical Wall Digging Depth | 227 in |
| Max Cutting Height | 398 in |
| Max Loading Height | 277 in |
| Max Reach Along Ground | 408 in |
| Shipping Length of Unit | 441 in |
| Shipping Height of Unit | 134 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 285 in |
|---|---|
| Max Cutting Height | 408 in |
| Max Loading Height | 285 in |
| Max Vertical Wall Digging Depth | 251 in |
| Max Reach Along Ground | 431 in |
| Shipping Length of Unit | 439 in |
| Shipping Height of Unit | 130 in |
