Krupp

KMK3050

All Terrain Crane

Gross Power
308.5 hp
Transport Width
100 in
All all terrain cranes

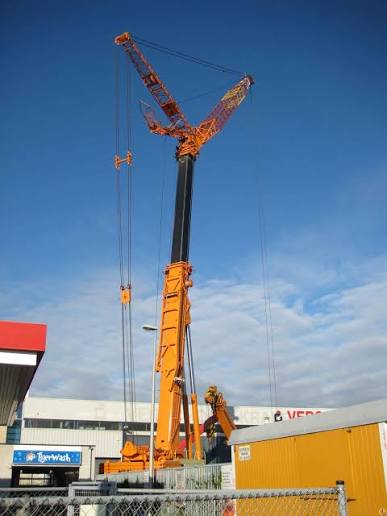

Krupp KMK3050 All Terrain Crane
1 / 5
Image 1 of 5
Image: truck1.eu

Specifications

23 data points

Operating Specifications

Operating Specifications specifications
Tire Size14.00R25
Carrier Fuel Capacity95.2 gal
Operating Voltage28 V
Number of Axels3
Alternator Supplied Amperage55 A

Dimensions

Dimensions specifications
Transport Width100 in
Transport Height138 in
Transport Length434 in
Width w/ Outriggers Extended245 in
Upper Structure Tail Swing Radius126 in
Carrier Length328 in

Transmission

Transmission specifications
Transmission TypeAllison automatic transmission MD 3060 P
Number of Forward Gears6

Boom

Boom specifications
Number of Sections4
Max Height @ Max Raise Angle - no jib1,500 in
Min Height @ Max Raise Angle386 in
Max Elevating Angle82 °

CARRIER ENGINE

CARRIER ENGINE specifications
Gross Power308.5 hp
Max Torque988 lb-ft
Torque Measured @1,250 rpm
MakeKrupp
Power Measured @2,100 rpm

UPPER STRUCTURE ENGINE

UPPER STRUCTURE ENGINE specifications
MakeKrupp
