Kubota

B2920

Tractor

Operating Weight
1,554 lb
Displacement
77 in³
Power Measured @
2,800 rpm
Gross Power
29.0 hp
All tractors

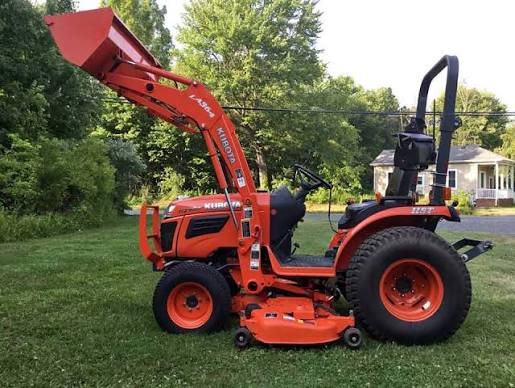

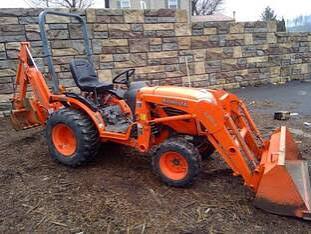

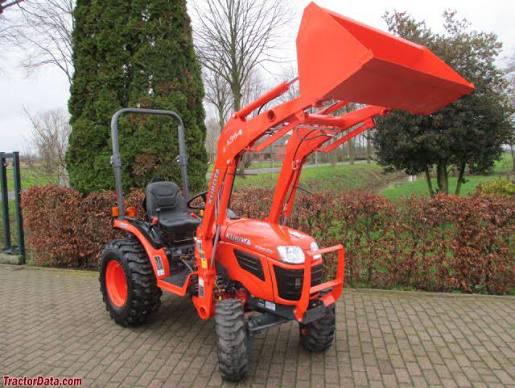

Kubota B2920 Tractor
1 / 5
Image 1 of 5
Image: colemanequip.com

Specifications

23 data points

Operating Specifications

Operating Specifications specifications
Operating Weight1,554 lb
Fuel Capacity6.7 gal
3 Point Hitch Lift Capacity @ 24 inches1,058 lb
3 Point Hitch Typecat. I
Turning Radius83 in
Cooling System Fluid Capacity1.2 gal
Engine Oil Capacity0.8 gal

Engine

Engine specifications
Engine ModelD1305
Displacement77 in³
Power Measured @2,800 rpm
Gross Power29.0 hp
Number of Cylinders3
PTO Power21.0 hp

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity2.2 gal/min

Dimensions

Dimensions specifications
Wheelbase62 in
Overall Length8 in
Tire Sizefront 7-12 rear 11.2-16
Width Outside Frame49 in

Transmission

Transmission specifications
Max Speed12.6 mph
Transmission TypeHST 3 range

Production

Production specifications
SeriesB2x20 Series
Years Manufactured2,008 – 2,015

Axles

Axles specifications
Final Drivespud gear
