Kubota

KX161-3

Mini Excavator

Operating Weight
11,532 lb
Max Digging Depth
151 in
Net Power
47.0 hp
All mini excavators

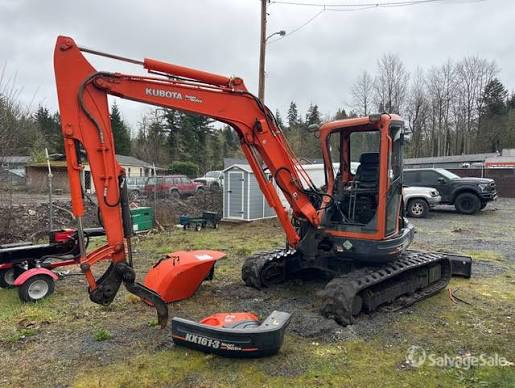

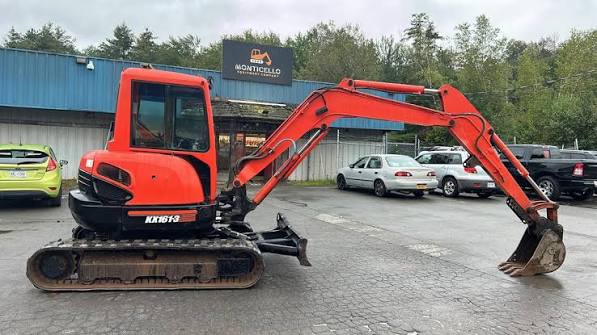

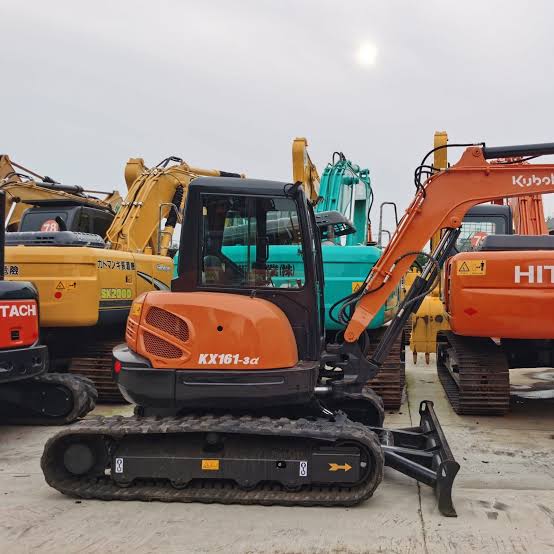

Kubota KX161-3 Mini Excavator
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

22 data points

Operating Specifications

Operating Specifications specifications
Operating Weight11,532 lb
Fuel Capacity18.5 gal
Hydraulic Pump Flow Capacity31.4 gal/min
Hydraulic System Fluid Capacity17.7 gal

Engine

Engine specifications
Engine ModelV2403-M
Displacement148 in³
Power Measured @2,200 rpm
Net Power47.0 hp

Dimensions

Dimensions specifications
Ground Clearance13 in
Width to Outside of Tracks78 in
Digging Depth154 in
Digging Reach154 in

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Max Travel Speed2.9 mph

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth151 in
Max Reach Along Ground241 in
Max Vertical Wall Digging Depth102 in
Max Loading Height165 in
Shipping Length of Unit219 in
Max Cutting Height226 in
Shipping Height of Unit101 in

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm
