Kubota

L2800 Gear

Tractor

Displacement
85 in³
Power Measured @
2,800 rpm
Gross Power
29.0 hp
All tractors

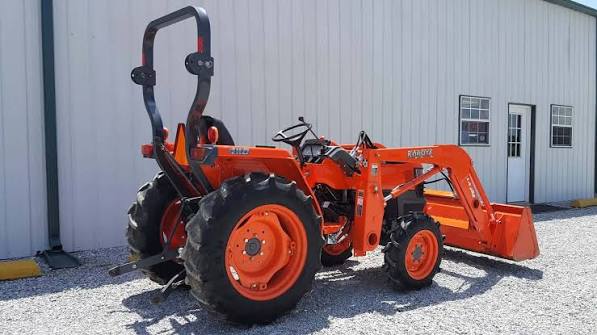

Kubota L2800 Gear Tractor
1 / 5
Image 1 of 5
Image: ebay.com

Specifications

24 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity9.0 gal
3 Point Hitch Lift Capacity @ 24 inches1,435 lb
3 Point Hitch TypeCat. I
Operating Voltage12 V
Tire Size Front - 2wd / 4wd43600

Engine

Engine specifications
Displacement85 in³
Power Measured @2,800 rpm
Gross Power29.0 hp
Number of Cylinders3
AspirationE-TVCS indirect injection
PTO Power24.0 hp

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity6.6 gal/min

Dimensions

Dimensions specifications
Ground Clearance13 in
Height - Top of Cab85 in
Wheelbase64 in
Overall Width52 in
Tire Sizefront 7-16 rear 11.2-24
Width Outside Frame52 in
Height - Top of ROPS/FOPS85 in

Transmission

Transmission specifications
Max Speed13.7 mph
Number of Forward Gears8
Transmission Typesliding gear constant mesh
Number of Reverse Gears4

Tires & Wheels

Tires & Wheels specifications
Rear Tires Size11.2-24
