Kubota
L3540GST
- Operating Weight
- 3,296 lb
- Displacement
- 111 in³
- Power Measured @
- 2,700 rpm
- Gross Power
- 37.0 hp
1 / 5

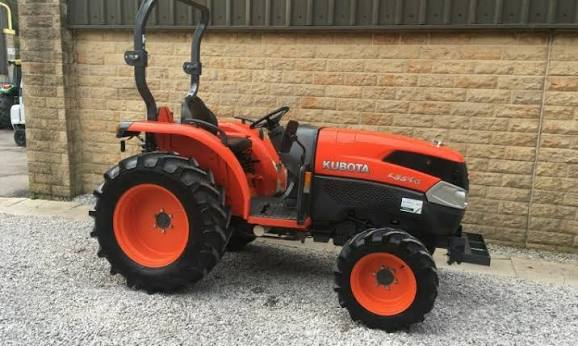

Image 1 of 5
Specifications
25 data points
Operating Specifications
| Operating Weight | 3,296 lb |
|---|---|
| Fuel Capacity | 11.7 gal |
| 3 Point Hitch Lift Capacity @ 24 inches | 2,646 lb |
| 3 Point Hitch Type | Cat. I |
| Turning Radius | 107 in |
| Alternator Supplied Amperage | 40 A |
| Operating Voltage | 12 V |
Engine
| Engine Model | E-TVCS |
|---|---|
| Displacement | 111 in³ |
| Power Measured @ | 2,700 rpm |
| Gross Power | 37.0 hp |
| Net Power | 35.0 hp |
| Number of Cylinders | 3 |
| Aspiration | natural |
| PTO Power | 29.5 hp |
Hydraulic System
| Pump Flow Capacity | 13.3 gal/min |
|---|
Dimensions
| Height - Top of Cab | 97 in |
|---|---|
| Wheelbase | 72 in |
| Overall Length | 10 in |
| Tire Size | front 7.2-16 rear 12.4-24 |
| Width Outside Frame | 60 in |
Transmission
| Max Speed | 16.6 mph |
|---|---|
| Number of Forward Gears | 12 |
| Transmission Type | GST |
| Number of Reverse Gears | 8 |
