Kubota

L3560DTRC

Tractor

Operating Weight
3,351 lb
Displacement
148 in³
Gross Power
37.0 hp
All tractors

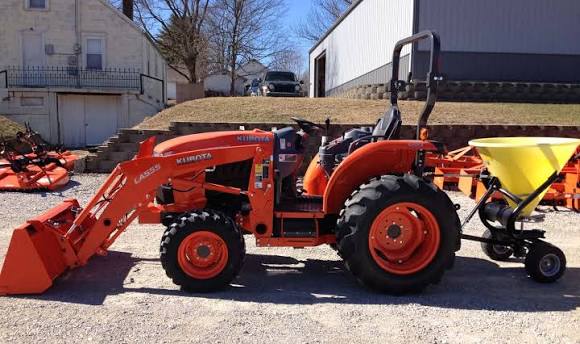

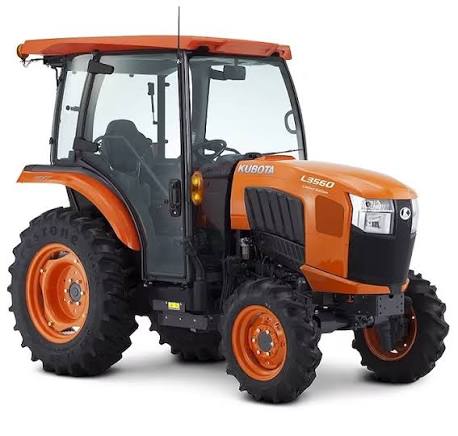

Kubota L3560DTRC Tractor
1 / 5
Image 1 of 5
Image: streackertractor.com

Specifications

39 data points

Operating Specifications

Operating Specifications specifications
Operating Weight3,351 lb
Fuel Capacity13.5 gal
3 Point Hitch Lift Capacity @ 24 inches2,646 lb
3 Point Hitch TypeCategory 1
Turning Radius107 in
Alternator Supplied Amperage40 A
Operating Voltage12 V
Tire Size Front - 2wd / 4wd7.2 - 16

Engine

Engine specifications
Engine ModelL3560DTRC
Displacement148 in³
Gross Power37.0 hp
Net Power35.0 hp
Number of Cylinders3
AspirationNatural with EGR
Engine MakeKUBOTA
PTO Power29.5 hp
Bore4 in
Stroke4 in
Engine TypeE-TVCS indirect injection vertical liquid-cooled 4-cycle diesel
Rated Speed2,700 rpm

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity4.9 gal/min
Implement Pump Flow PS8.3 gal/min

Dimensions

Dimensions specifications
Ground Clearance14 in
Wheelbase72 in
Overall Length115 in
Overall Width60 in
Height - Top of ROPS/FOPS98 in
Rear Tread Range—
Front Tread Range46 in

Transmission

Transmission specifications
Number of Forward Gears8
Transmission TypeFST
Number of Reverse Gears8
BrakesWet disc type
SteeringHydrostatic power steering
Clutch, wet/dryDry type single stage

Tires & Wheels

Tires & Wheels specifications
Rear Tires Size12.4 - 24

Power Take-Off (PTO)

Power Take-Off (PTO) specifications
Power Take-Off(PTO) TypeIndependent
Rear PTO1 speed: 540 rpm
Mid- PTO1 speed: 2000 rpm
