Kubota

L3830F

Tractor

Operating Weight
3,153 lb
Displacement
112 in³
Power Measured @
2,700 rpm
Gross Power
39.0 hp
All tractors

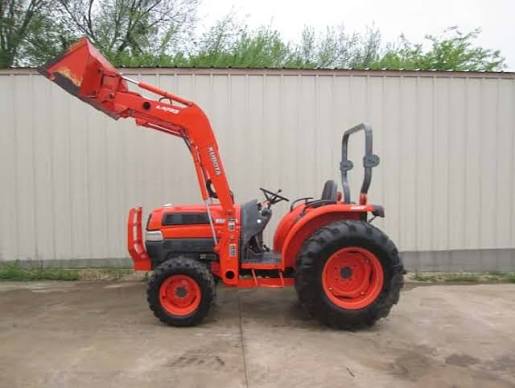

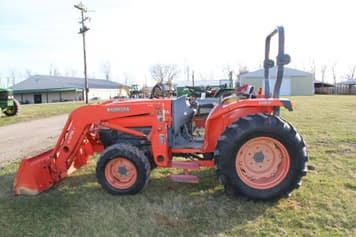

Kubota L3830F Tractor
1 / 5
Image 1 of 5
Image: tractordata.com

Specifications

26 data points

Operating Specifications

Operating Specifications specifications
Operating Weight3,153 lb
Fuel Capacity10.6 gal
3 Point Hitch Lift Capacity @ 24 inches2,756 lb
Turning Radius107 in
Alternator Supplied Amperage40 A
Operating Voltage12 V
Tire Size Front - 2wd / 4wd6.0-16

Engine

Engine specifications
Engine ModelL3830 F
Displacement112 in³
Power Measured @2,700 rpm
Gross Power39.0 hp
Net Power37.4 hp
Number of Cylinders3
PTO Power32.0 hp

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity13.3 gal/min

Dimensions

Dimensions specifications
Ground Clearance15 in
Wheelbase73 in
Overall Length10 in
Overall Width67 in
Height - Top of ROPS/FOPS91 in
Height85 in

Transmission

Transmission specifications
Max Speed16.0 mph
Number of Forward Gears8
Transmission TypeFST
Number of Reverse Gears8

Tires & Wheels

Tires & Wheels specifications
Rear Tires Size14.9-24
