Kubota

L4060HSTCC

Tractor

Operating Weight
4,023 lb
Displacement
148 in³
Gross Power
42.0 hp
All tractors

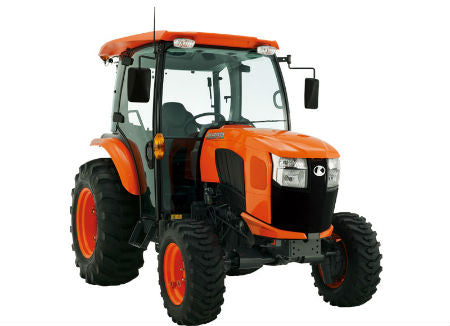

Kubota L4060HSTCC Tractor
1 / 5
Image 1 of 5
Image: kooybros.com

Specifications

41 data points

Operating Specifications

Operating Specifications specifications
Operating Weight4,023 lb
Fuel Capacity13.5 gal
3 Point Hitch Lift Capacity @ 24 inches2,756 lb
3 Point Hitch TypeCategory 1
Turning Radius107 in
Alternator Supplied Amperage60 A
Operating Voltage12 V
Tire Size Front - 2wd / 4wd8.3 - 16

Engine

Engine specifications
Engine ModelL4060HSTCC
Displacement148 in³
Gross Power42.0 hp
Net Power40.0 hp
Number of Cylinders4
AspirationNatural with EGR
Engine MakeKUBOTA
PTO Power32.5 hp
Bore4 in
Stroke4 in
Engine TypeE-TVCS indirect injection vertical liquid-cooled 4-cycle diesel
Rated Speed2,600 rpm

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity4.7 gal/min
Number of Remote Control Valves2
Implement Pump Flow PS9.4 gal/min

Dimensions

Dimensions specifications
Ground Clearance14 in
Wheelbase76 in
Overall Length122 in
Overall Width67 in
Height - Top of ROPS/FOPS91 in
Rear Tread Range—
Front Tread Range46 in

Transmission

Transmission specifications
Max Speed16.8 mph
Number of Forward Gears6
Transmission TypeHST Plus
Number of Reverse Gears6
BrakesWet disc type
SteeringHydrostatic power steering
Clutch, wet/dryDry type single stage

Tires & Wheels

Tires & Wheels specifications
Rear Tires Size14.9 - 24

Power Take-Off (PTO)

Power Take-Off (PTO) specifications
Power Take-Off(PTO) TypeIndependent
Rear PTO1 speed: 540 rpm
Mid- PTO1 speed: 2000 rpm
