Kubota

L4630GSTC

Tractor

Operating Weight
3,814 lb
Displacement
134 in³
Power Measured @
2,700 rpm
Gross Power
47.2 hp
All tractors

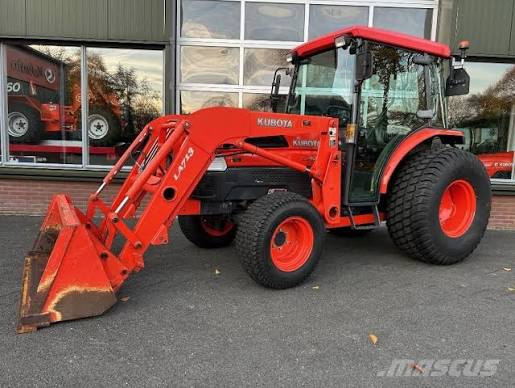

Kubota L4630GSTC Tractor
1 / 5
Image 1 of 5
Image: marketbook.com.na

Specifications

26 data points

Operating Specifications

Operating Specifications specifications
Operating Weight3,814 lb
Fuel Capacity10.6 gal
3 Point Hitch Lift Capacity @ 24 inches2,756 lb
3 Point Hitch TypeCat. I
Turning Radius115 in
Alternator Supplied Amperage40 A
Operating Voltage12 V

Engine

Engine specifications
Engine ModelL4630 GSTC
Displacement134 in³
Power Measured @2,700 rpm
Gross Power47.2 hp
Net Power44.7 hp
Number of Cylinders4
AspirationE-TVCS indirect injection
PTO Power39.5 hp

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity14.7 gal/min

Dimensions

Dimensions specifications
Ground Clearance15 in
Height - Top of Cab88 in
Wheelbase76 in
Overall Length10 in
Tire Sizefront 8.3-16 rear 14.9-24
Width Outside Frame67 in

Transmission

Transmission specifications
Max Speed16.0 mph
Number of Forward Gears24
Transmission TypeGST
Number of Reverse Gears16
