Kubota

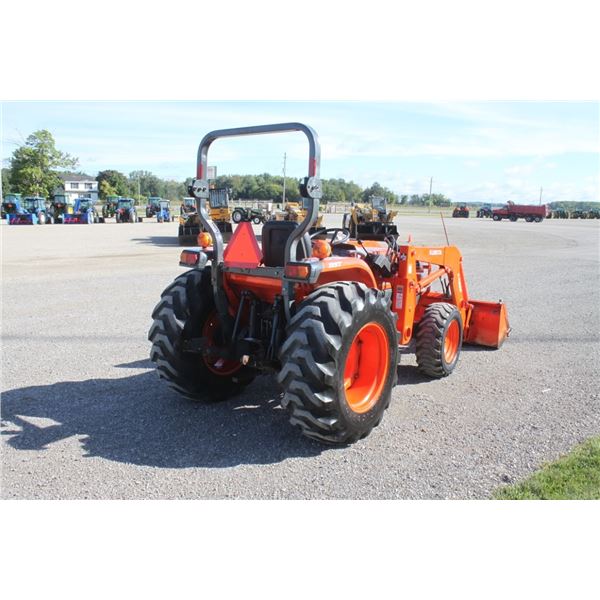

L4630HST
- Operating Weight
- 3,516 lb
- Displacement
- 134 in³
- Power Measured @
- 2,700 rpm
- Gross Power
- 47.2 hp
1 / 5
Image 1 of 5
Specifications
26 data points
Operating Specifications
| Operating Weight | 3,516 lb |
|---|---|
| Fuel Capacity | 10.6 gal |
| 3 Point Hitch Lift Capacity @ 24 inches | 2,756 lb |
| 3 Point Hitch Type | Cat. I |
| Turning Radius | 115 in |
| Alternator Supplied Amperage | 40 A |
| Operating Voltage | 12 V |
Engine
| Engine Model | L4630 HST |
|---|---|
| Displacement | 134 in³ |
| Power Measured @ | 2,700 rpm |
| Gross Power | 47.2 hp |
| Net Power | 44.7 hp |
| Number of Cylinders | 4 |
| Aspiration | E-TVCS indirect injection |
| PTO Power | 38.0 hp |
Hydraulic System
| Pump Flow Capacity | 14.7 gal/min |
|---|
Dimensions
| Ground Clearance | 15 in |
|---|---|
| Height - Top of Cab | 91 in |
| Wheelbase | 76 in |
| Overall Length | 10 in |
| Tire Size | front 8.3-16 rear 14.9-24 |
| Width Outside Frame | 67 in |
Transmission
| Max Speed | 15.8 mph |
|---|---|
| Number of Forward Gears | 3 |
| Transmission Type | HST 3 range |
| Number of Reverse Gears | 3 |
